BL-01000-TC-G25 - Datasheet
MBA
Category Information

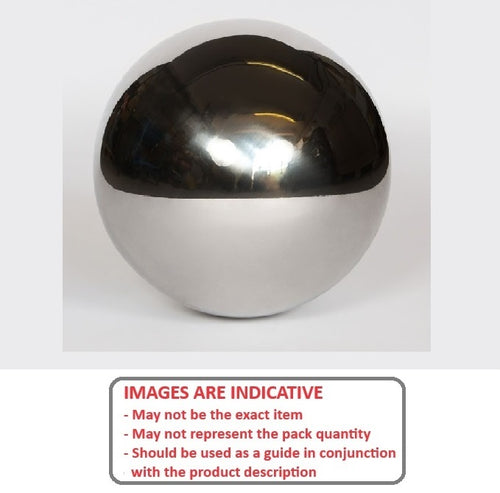

Balls - Metallic - Tungsten CarbideTungsten Carbide Metallic Balls. Extreme hardness and wear resistance.
- Grades shown are AFBMA and ISO3290-1 which relates primarily to the ovality of the ball rather than the diametrical tolerance
- General balls offered for sale may be from different ball lots, so the diametrical tolerance shown, indicates a variance that might be encountered if balls of different gauges are mixed, unless a ball gauge is specified for the part.
- For diametrically critical applications, a special quote can be obtained for balls of a specified ball gauge.
- Hardness: Rockwell A: 91.5 (Approx 77 Rockwell C).
- Extreme hardness and wear resistance.
- Specific Gravity: 14.95.
Product Data

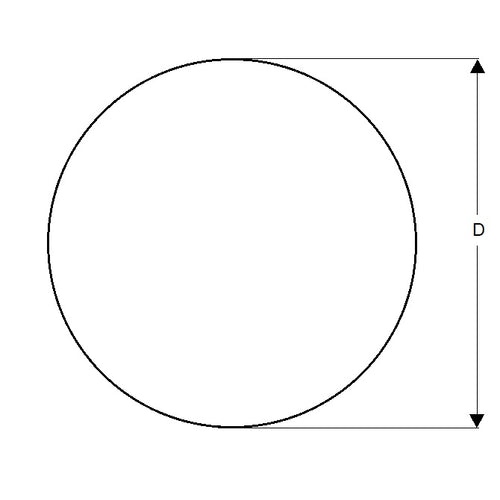

- Diameter (D)
:
10.000
mm
+/- 0.00254
(Equiv. 0.394 in.) - Material Tungsten Carbide
- Precision AFBMA Grade 25
- Hardness 91.5 Rockwell A
- Properties Extreme hardness and wear resistance.
- Colour Dull Grey
- Specific Gravity 14.95
- Ovality +/-0.000635
- Material Tungsten Carbide
Product Compliance and Data
Additional Resources
Cross References
- 9686K93
