BL-00953-S4-G100 - Datasheet

MBA

Category Information

Balls - Metallic - Stainless Steel - 304 Grade

304 Grade Stainless Steel Metallic Balls. A2 Grade. Low magnetic permeability. Good corrosion resistance. Excellent for use in handling foodstuffs.

  • Grades shown are AFBMA and ISO3290-1 which relates primarily to the ovality of the ball rather than the diametrical tolerance
  • General balls offered for sale may be from different ball lots, so the diametrical tolerance shown, indicates a variance that might be encountered if balls of different gauges are mixed, unless a ball gauge is specified for the part.
  • For diametrically critical applications, a special quote can be obtained for balls of a specified ball gauge.
  • Non annealed. Hardness: Rockwell C: 25-39. Specific Gravity: 7.916.
  • Low magnetic permeability. Good corrosion resistance. Excellent for use in handling foodstuffs.
  • Note! Increase in magnetic permeability may occur due to the grinding process and can be relieved by heating to over 1000 oC.

Product Data

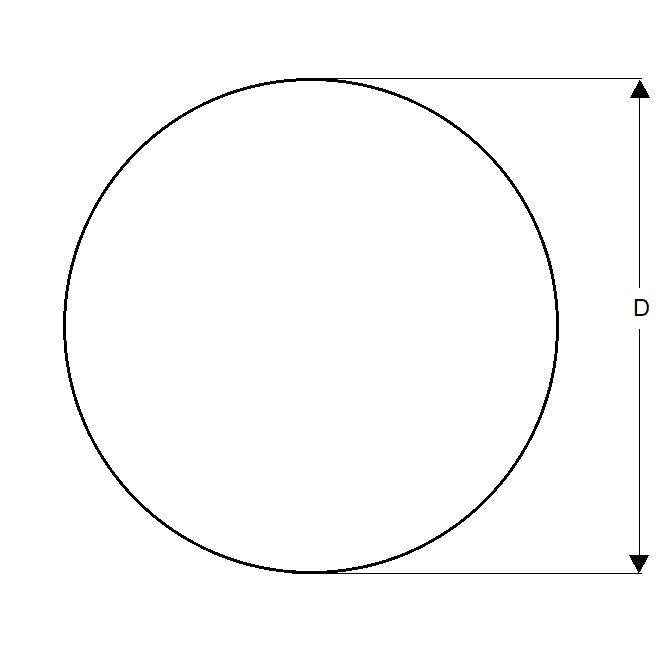

  • Diameter (D) : 9.525 mm +/- 0.01270
    (Equiv. 0.375 in.)
  • Material 304 Stainless
  • Precision ISO 3290 Grade 100
  • Hardness 25-39 Rockwell C
  • Properties Low magnetic permeability. Good corrosion resistance
  • Colour Silver
  • Specific Gravity 7.916
  • Ovality +/-0.00250
  • Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Country of Origin: TW

Product Compliance and Data

Additional Resources

Cross References

  • 9291K52
  • Small Parts BX-6
  • BX6
