AR12RS - Datasheet

MBA

Category Information

Leadscrew - Length - Imperial - Acme - Alloy Steel

Alloy Steel Acme Imperial Length Leadscrew. Acme Leadscrew Thread - Use with Acme Supernuts

  • An expanded range may be available on special order. Please enquire.
  • Alloy steel heat treated to RC 56-60

Product Data

  • Outside Diameter : Left hand 9.525 mm
  • Number of Threads Per Inch 12
  • Number of Starts 1
  • Lead 2.1166 mm
  • Length 304.8 mm
  • Direction Left Hand
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 93410A414
    • AR12
    • AR-12
    View full details

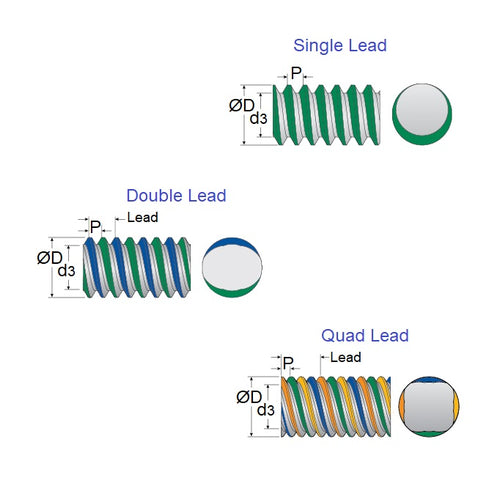

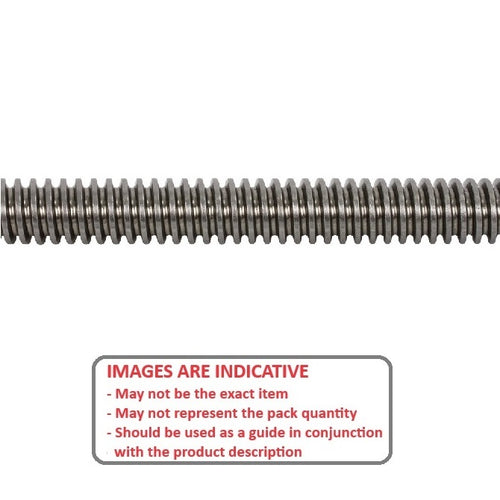

    AR12RSDiagramAR12RSImage
