MAG-D-10-025-C2P - Datasheet
MBA
Category Information

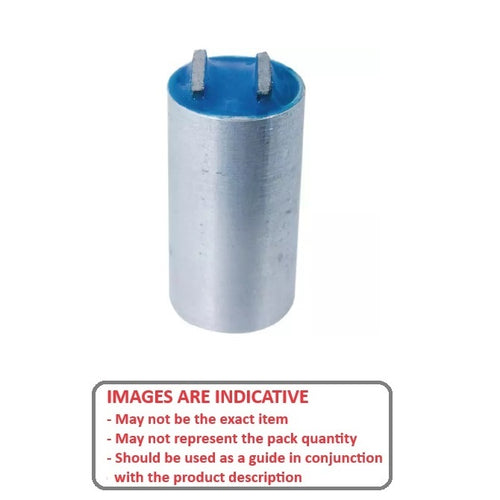

Magnets - 2 Pole - Ceramic Insulated Aluminium Press FitCeramic Insulated Aluminium Press Fit 2 Pole Magnets. Extended poles can be lightly machined. Press fit. Insulated aluminium casing.
- Non conductive hard brittle material
- Performs best at temperatures below 249 oC
- Can be cut with a diamond wheel
- Difficult to grind and can't be machined or drilled by normal methods
- Tolerance 0.13mm on all dimensions

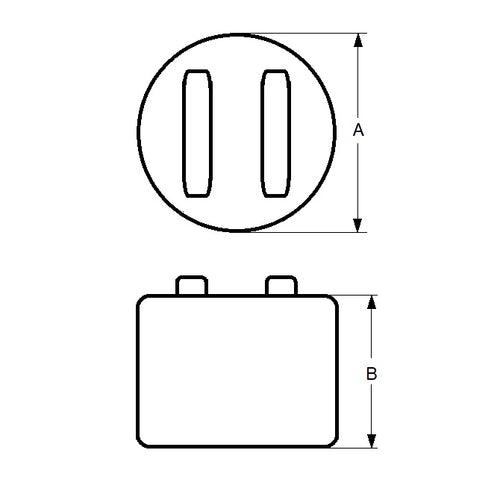

Product Data
- Diameter
:
9.525
mm
(Equiv. 0.375 in.) - Length
25.4
mm
(Equiv. 1 in.) - Pull 1.1 kg
Product Compliance and Data
Additional Resources
Cross References
- MAG-10
- MAG10
