SLH-0953-1746-06350-H - Datasheet
MBA
Category Information
Sleeves - Hex Hole - HardenedHardened Hex Hole Sleeves. Carefully turned to provide 0.076mm (0.003in) concentricity ID to OD. Pre-hardened to Rockwell 23-30C.
- Precisely machined, round outer surface and a uniform, precisely broached hex-shaped hole completely through its center.
Product Data

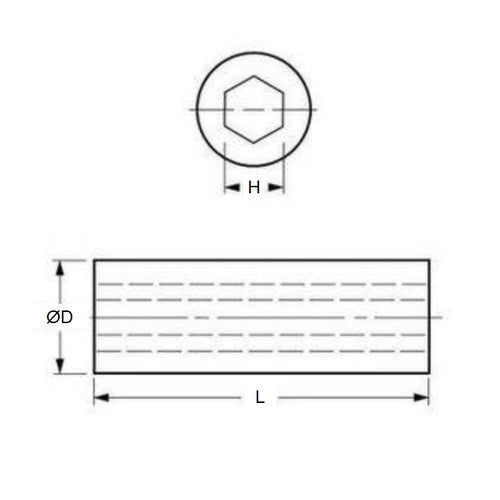

- Nominal Hex Size
:
9.525
mm
(Equiv. 0.375 in.) - Outside Diameter (OD)
17.463
mm
(Equiv. 0.688 in.) - Length (L)
63.500
mm
(Equiv. 2.5 in.) - Actual Hex Size (H) 9.601 mm
- Material Pre-Hardened Steel
Product Compliance and Data
Additional Resources
Cross References
- HHS110
- HHS-110
