BFM-375-P - Datasheet
MBA
Category Information

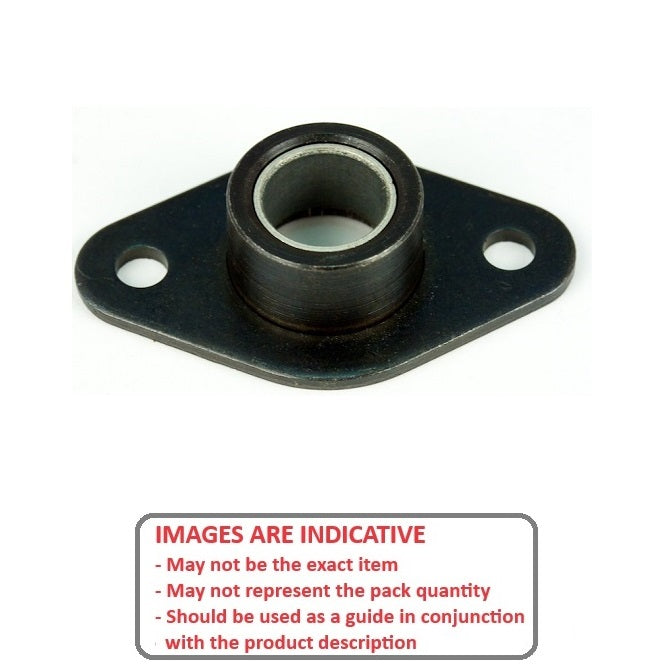

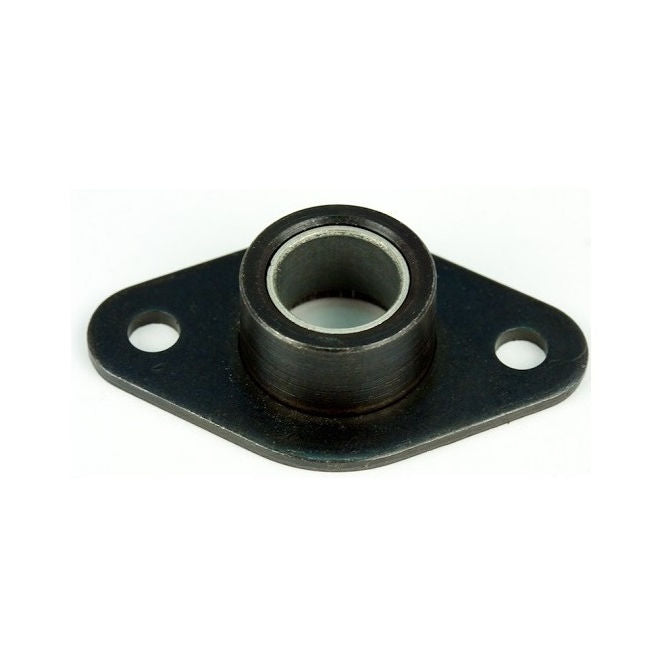

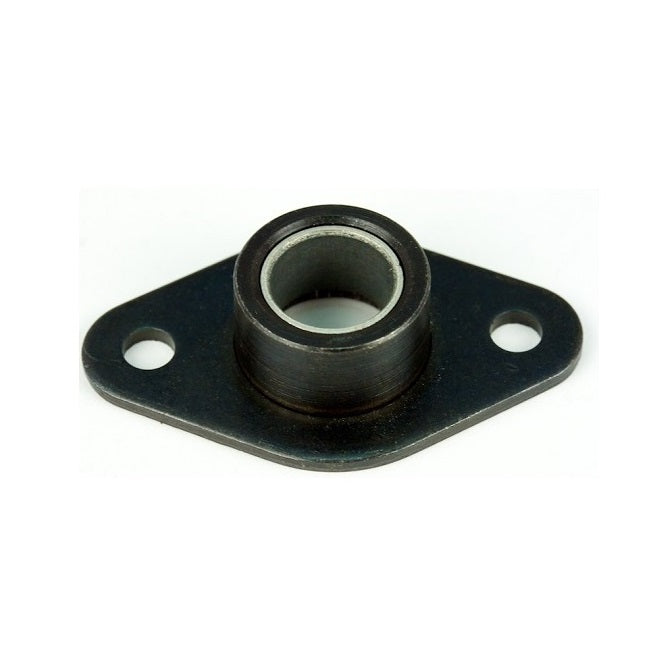

Housing Assembly - Flanged 2 Bolt - Self Aligning - PTFE BronzePTFE Bronze Self Aligning Flanged 2 Bolt Housing Assembly. Low profile self aligning flange mounted PTFE bronze bearings
- An expanded range may be available on special order. Please enquire.
- +/- 5% Static Alignment
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nominal Shaft Size
:
9.525
mm
(Equiv. 0.375 in.) - Width (W)
59.69
mm
(Equiv. 2.35 in.) - Overall Length (A)
21.43
mm
(Equiv. 0.844 in.) - Overall Height (E) 36.32 mm
- Min to Max Shaft Dia. 9.477 to 9.500 mm
- Max. Radial Dynamic Load 15124 N
- Bolt Hole Centres (L) 45.21 mm
- Max Speed 4010
- Material PTFE Impregnated Bronze
Product Compliance and Data
Additional Resources
Cross References
- 2820T35
