SLH-0953-1588-06350 - Datasheet
MBA
Category Information

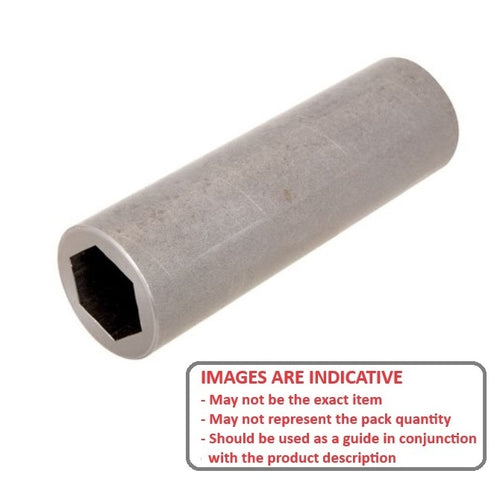

Sleeves - Hex Hole - Carbon SteelCarbon Steel Hex Hole Sleeves. Carefully turned to provide 0.076mm (0.003in) concentricity ID to OD.
- Precisely machined, round outer surface and a uniform, precisely broached hex-shaped hole completely through its center.
Product Data

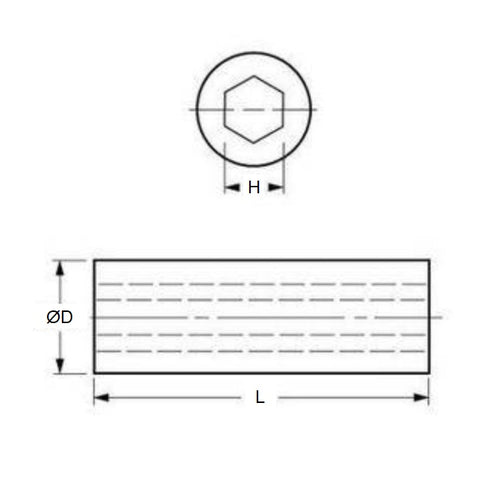

- Nominal Hex Size
:
9.525
mm
(Equiv. 0.375 in.) - Outside Diameter (OD)
15.875
mm
(Equiv. 0.625 in.) - Length (L)
63.500
mm
(Equiv. 2.5 in.) - Actual Hex Size (H) 9.601 mm
- Material Carbon Steel 11L17
Product Compliance and Data
Additional Resources
Cross References
- Small Parts 10000140
- HHS-10
- HHS10
- A7C20-06
- A7C2006
