SLQ-0953-1509-06350 - Datasheet
MBA
Category Information

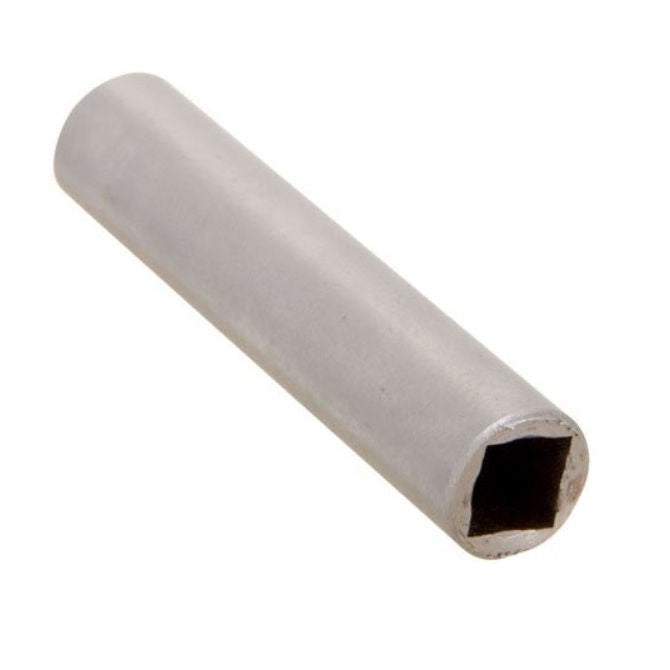

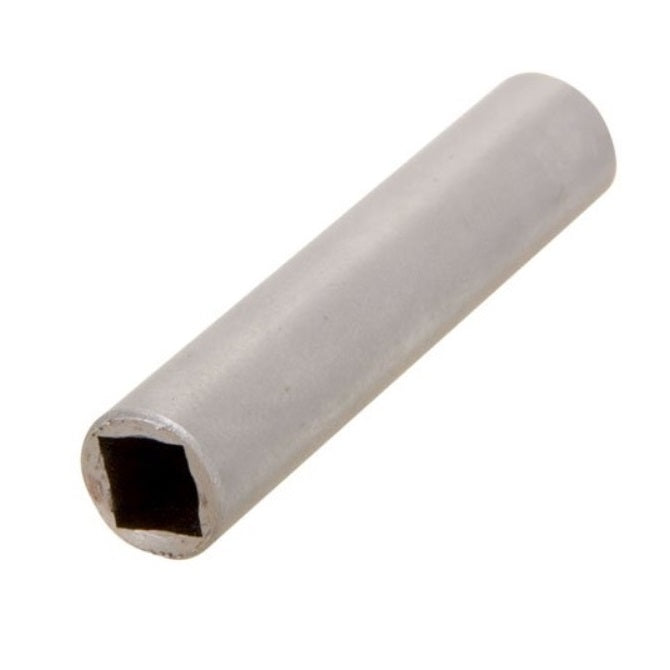

Sleeves - Square Hole - Plain - Carbon SteelCarbon Steel Plain Square Hole Sleeves. Square and concentric to 0.076mm (0.003in).
- Precisely machined, round outer surface and a uniform, precisely square-shaped hole completely through its center.
Product Data
- Nominal Square Size
:
9.525
mm
+/- 0.0254
(Equiv. 0.375 in.) - Outside Diameter (C)
15.081
mm
(Equiv. 0.594 in.) - Length (B)
63.500
mm
(Equiv. 2.5 in.) - Actual Square Size (A) 9.652 mm
- Material Carbon Steel 11L17
Product Compliance and Data
Additional Resources
Cross References
- Small Parts 10000240
- SHSP37
- SHS-P37
- A7C19P037
- A7C19-P037
