PBC-100RS - Datasheet
MBA
Category Information

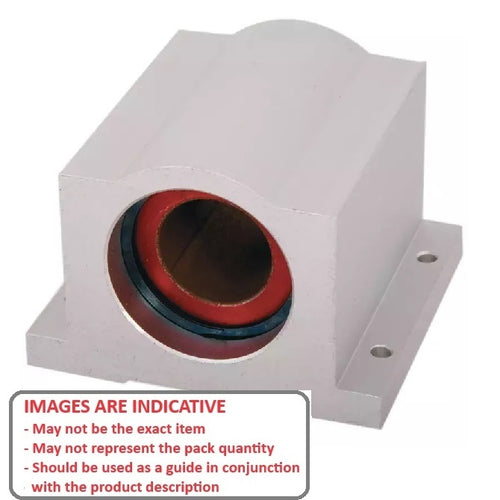

Linear - Housings Pillow Block Frelon - Precision - ClosedClosed Precision Housings Pillow Block Frelon Linear. Single and double length
- Bearing is Frelon Gold -tm- encased in a flanged housing made from 6061-T6 aluminium. Double length has two bearings mounted internally.
- For rotating and linear motion.
Product Data
- Bore Diameter
:
9.525
mm
+ 0.10 / + 0.05

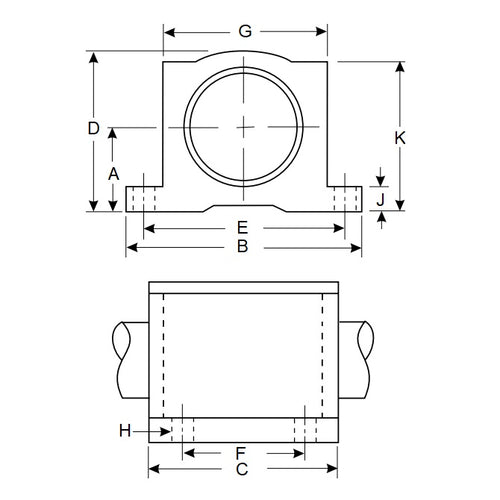

(Equiv. 0.375 in.) - Centre Bore Height (A)
12.700
mm
(Equiv. 0.5 in.) - Base Width (B)
44.450
mm
(Equiv. 1.75 in.) - Overall Length (C) 69.850 mm
- Height (D) 23.825 mm
- Centre Bolt Holes Width (E) 36.500 mm
- Centre Bolt Holes Length (F) 57.150 mm
- Housing Width (G) 28.575 mm
- Bolt Hole Size 3.962 mm
- Flange Height (J) 4.775 mm
- Centre Bore Height (A) 22.225 mm
- Max Load Rating 462.66 Kg
Product Compliance and Data
Additional Resources
Cross References
- Pacific PW06
