AR2RS - Datasheet

MBA

Category Information

Leadscrew - Length - Imperial - Acme - Alloy Steel

Alloy Steel Acme Imperial Length Leadscrew. Acme Leadscrew Thread - Use with Acme Supernuts

  • An expanded range may be available on special order. Please enquire.
  • Alloy steel heat treated to RC 56-60

Product Data

  • Outside Diameter : 9.525 mm
    (Equiv. 0.375 in.)
  • Number of Threads Per Inch 12
  • Number of Starts 1
  • Lead 2.1166 mm
  • Length 304.8 mm
  • Direction Right Hand
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 93410A609
    • AR-2
    • AR2
    View full details

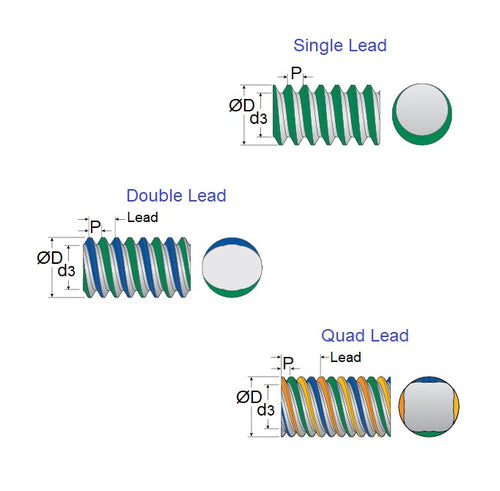

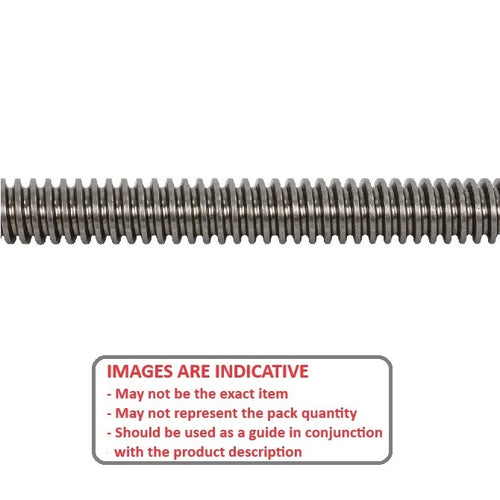

    AR2RSDiagramAR2RSImage
