US-037 - Datasheet
MBA
Category Information

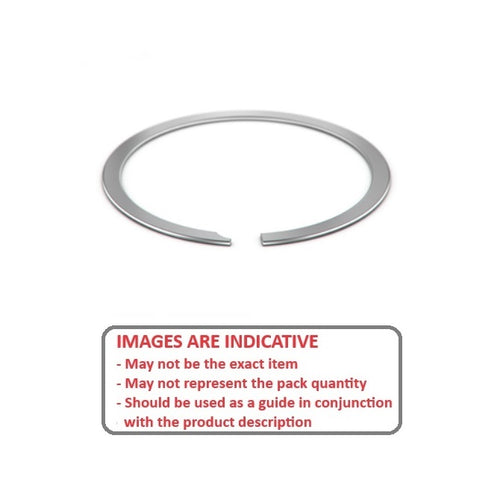

Retaining Rings - External - Spiral Rings - Light Duty - Carbon SteelCarbon Steel Light Duty Spiral Rings External Retaining Rings. Includes series CE / VS / US - Spring Steel
- An expanded range may be available on special order. Please enquire.
- Light duty single turn rings used in low clearance applications.
- Also used as a positioning point for light loads.
- Radius notch on one end for removal.
- Narrow radial wall yields moderate thrust loads.
- Equivalent to Associated Spring: CE, Smalley: VS, Spirolox and Ramsey: US
Product Data

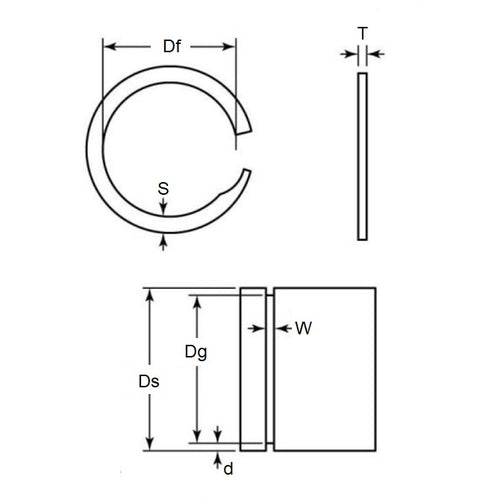

- Shaft Diameter (Ds)
:
9.525
mm
(Equiv. 0.375 in.) - Clip Thickness (T)
0.38
mm
+/- 0.05
(Equiv. 0.015 in.) - Groove Dia. (Dg)
8.92
mm
(Equiv. 0.351 in.) - Approx. Loose Circlip ID (A) 8.83 mm + 0.00 / - 0.25
- Radial Wall (S) 0.635 mm +/- 0.10
- Groove Width (W) 0.46 mm +/- 0.05
- Approx. Loose Clip OD 10.10 +/- - 0.03
- Groove Depth (d) 0.30
- Material Carbon Spring Steel
