SBTN-0927-DL - Datasheet
MBA
Category Information

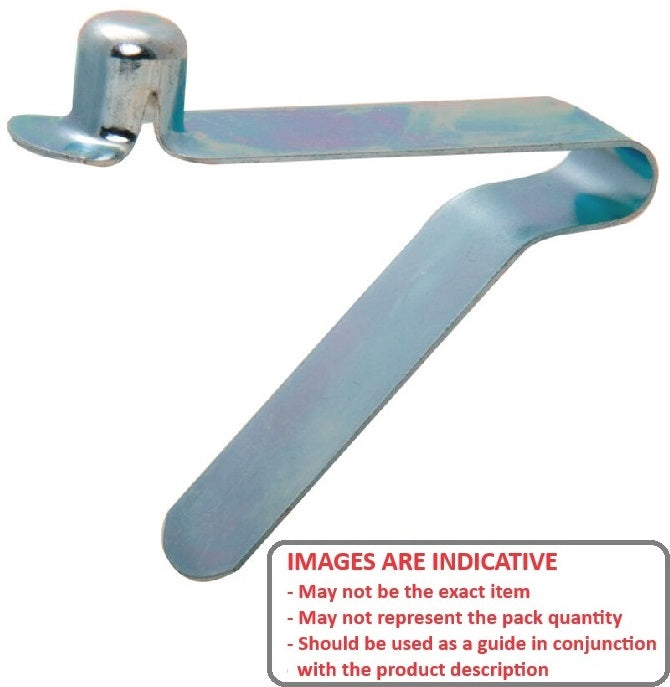

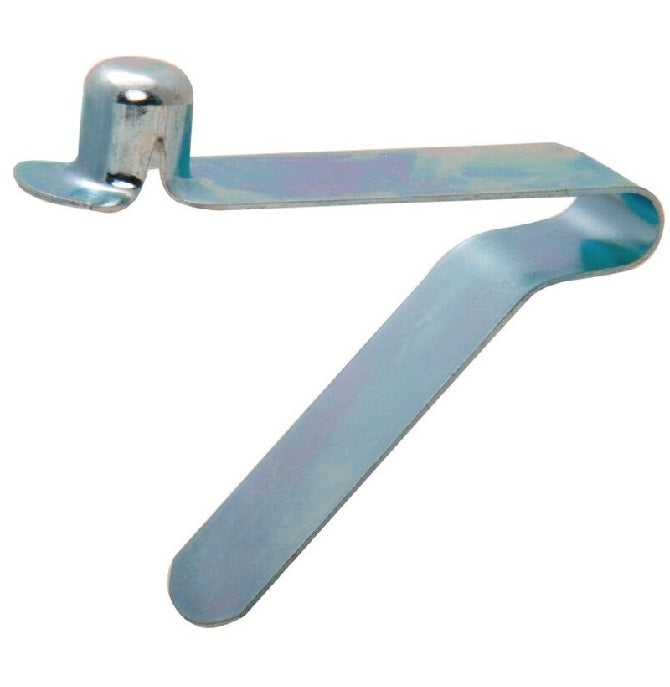

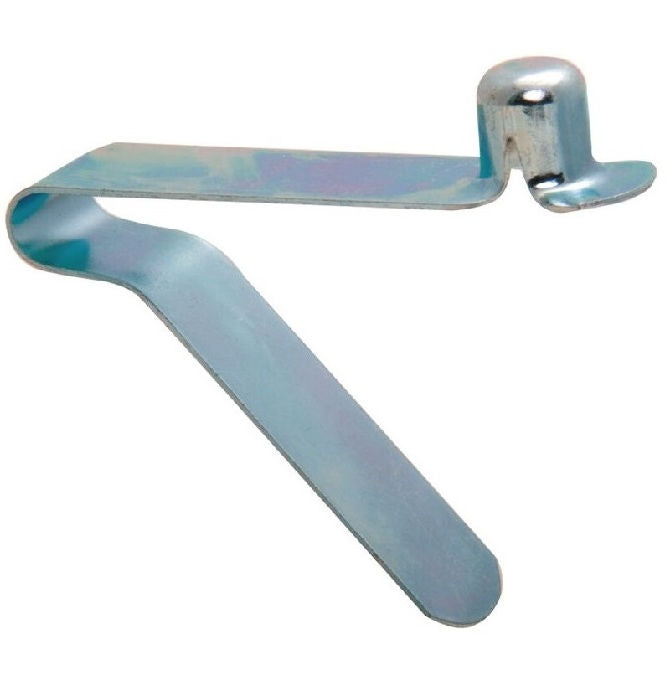

Snap Buttons - Single End - Dog LegDog Leg Single End Snap Buttons. Fasteners for telescoping tubing help reduce assembly time whilst improving your product functionality. Also called button clips or spring buttons.
- Eliminates the need for rivets and screws.
- Simply snap into place in square or round tubing.
- Made from 1050 heat treated spring steel with minimum 0.005mm (0.0002 inch) zinc plating
Product Data

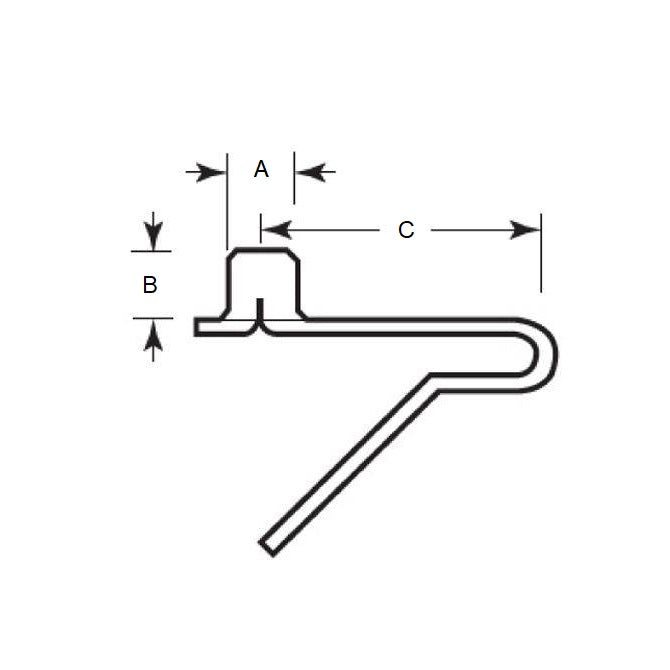

- Button Diameter (A)
:
9.27
mm
(Equiv. 0.365 in.) - Button Height (B)
9.40
mm
(Equiv. 0.37 in.) - Material Thickness
0.635
mm
(Equiv. 0.025 in.) - Clip Width 12.95 mm
- Centre to Middle of End (C) 45.72 mm
- Use with Round Tubing 15.2 to 28.4
- Use with Square Tubing 15.2 to 28.4
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- VA2160
- VA-2160
