ACE3RS - Datasheet

ACE

Category Information

Shock Absorbers - Accessories - Mounting Blocks

Mounting Blocks Accessories Shock Absorbers. This is the main category in this series

    Product Data

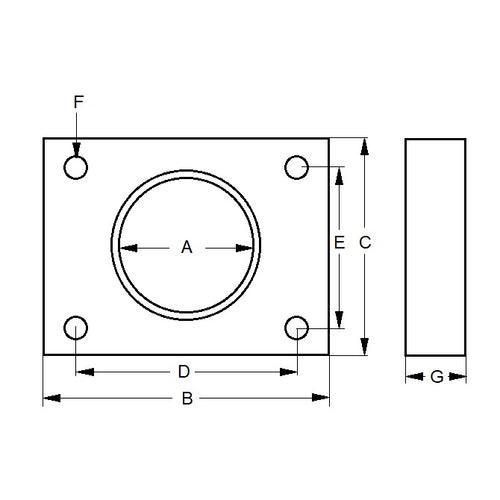

    • Suitable Thread (A) : 9/16-18 UNF (14.29mm)
    • Length (B) 45.97 mm
      (Equiv. 1.81 in.)
    • Width (C) 34.80 mm
      (Equiv. 1.37 in.)
    • Height (G) 15.75 mm
    • Bolt Centres (D/E) 35.05 / 25.40 mm
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • ACE3
      • ACE-3
      View full details

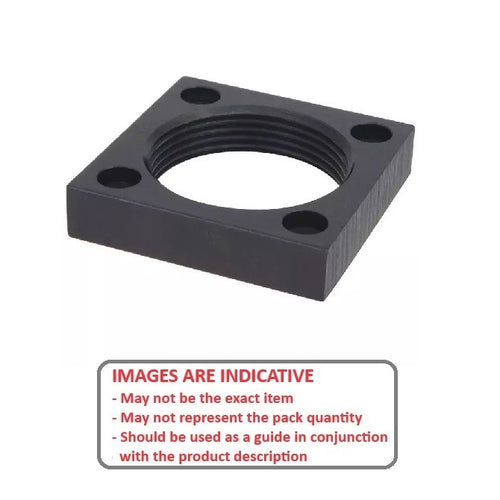

      ACE3RSDiagramACE3RSImage
