AR101RS - Datasheet
MBA
Category Information

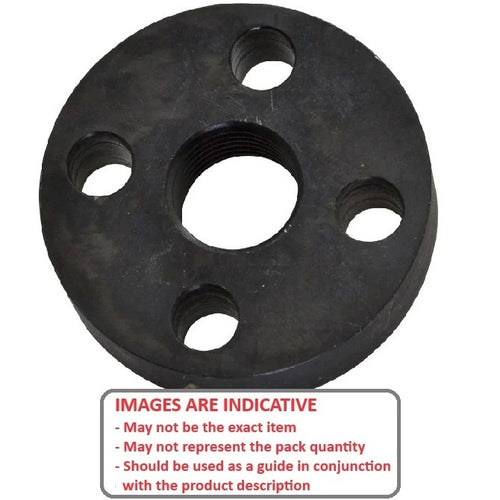

Leadscrew - Nut Flanges - For Acme NutsFor Acme Nuts Nut Flanges Leadscrew. Flanges for Acme leadscrew thread nuts imperial
- An expanded range may be available on special order. Please enquire.
- These flanges are screwed onto the outer thread of the red leadscrew nuts
- This provides a mounting surface to enable location of the leadscrew nut on the surface to be moved
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

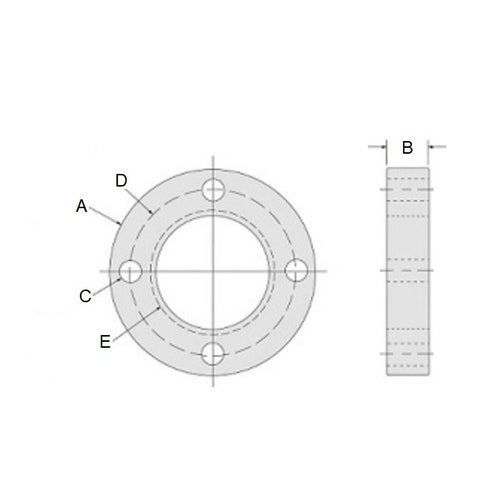

- Suitable Nut Mounting Thread : 9/16-18 UNF (14.29mm)
- Flange OD
40.640
mm
(Equiv. 1.6 in.) - Flange Thickness
10.414
mm
(Equiv. 0.41 in.) - Mounting Hole Diameter 28.575 mm
Product Compliance and Data
Additional Resources
Cross References
- AR101
- AR-101
