CP-091-286-54-003-R1-SC - Datasheet
MBA
Category Information

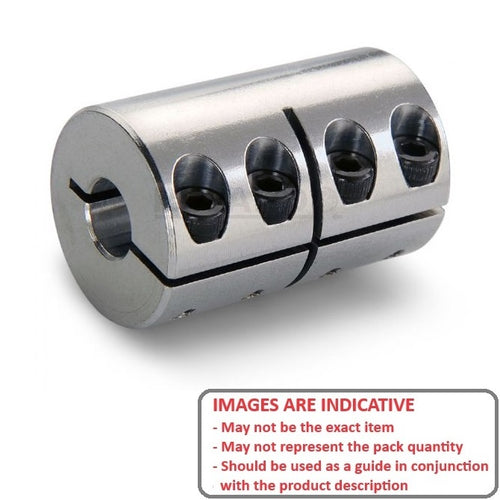

Couplings - Rigid - Clamp - 1 Piece - SteelSteel 1 Piece Clamp Rigid Couplings. 12L14 Steel
- An expanded range may be available on special order. Please enquire.
Product Data

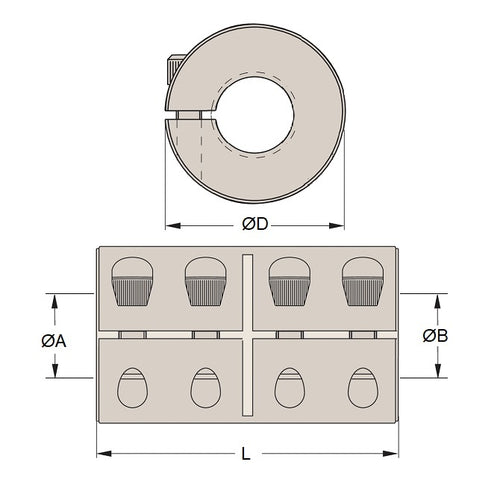

- Bore (b1) : Pilot Bore 9.144 mm
- Bore (b2)
28.575
mm
(Equiv. 1.125 in.) - OD (D)
53.975
mm
(Equiv. 2.125 in.) - Length (L) 82.550 mm
- Screw 1/4-28 x 15.87 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- CC-155
- CC155
