TMF-555-ARS - Datasheet
MBA
Category Information

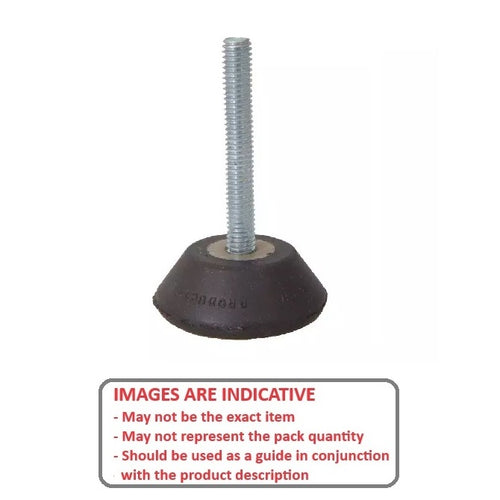

Mounts - Levelling Bonded Neoprene - With StudWith Stud Levelling Bonded Neoprene Mounts. Mounting feet let you isolate all types of machinery and equipment from vibration and floor motion.
- Mounting feet let you isolate all types of machinery and equipment from vibration and floor motion.

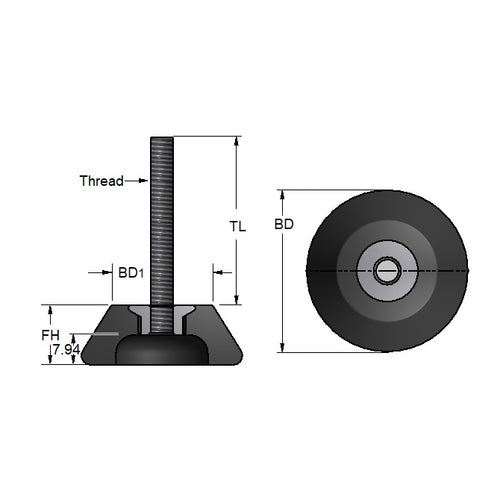

Product Data
- Load Capacity : 9.0 to 29.0 Kg
- Min Load Deflection 1.270 mm
- Max Load Deflection 6.350 mm
- Thread 3/16-16
- Thread Length 66.7 mm
- Base Diameter 55.6 mm
- Foot Height 20.6 mm
- Top Diameter 34.9 mm
