Miniature Bearings Australia
TMF-555RS - Datasheet
MBA
Category Information

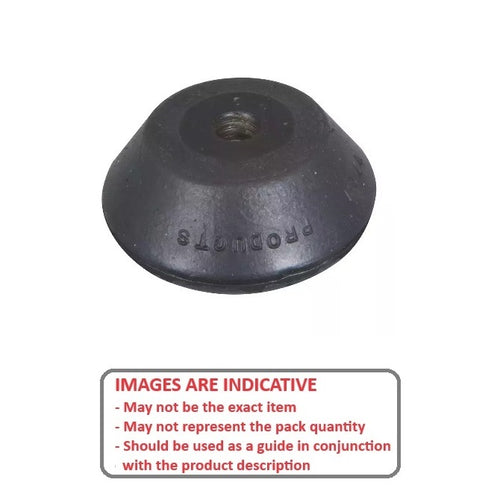

Mounts - Levelling Bonded Neoprene - No StudNo Stud Levelling Bonded Neoprene Mounts. Mounting feet let you isolate all types of machinery and equipment from vibration and floor motion.
- Mounting feet let you isolate all types of machinery and equipment from vibration and floor motion.
Product Data
- Load Capacity : 9.0 to 29.0 Kg
- Min Load Deflection 1.270 mm
- Max Load Deflection 6.350 mm
- Thread 3/16-16

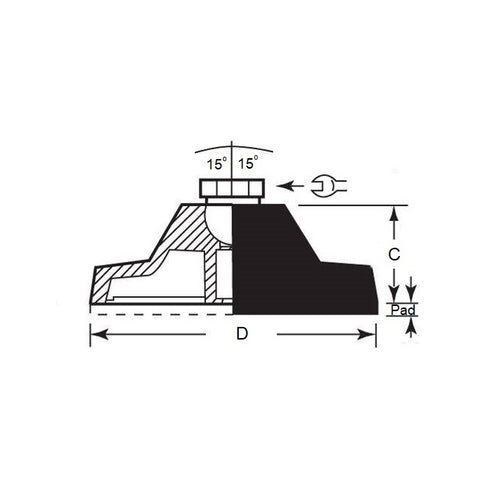

- Base Diameter 55.6 mm
- Foot Height 20.6 mm
- Top Diameter 34.9 mm
Product Compliance and Data
Additional Resources
Cross References
- 60855K73
