MCUP-0009-060 - Datasheet
MBA
Category Information

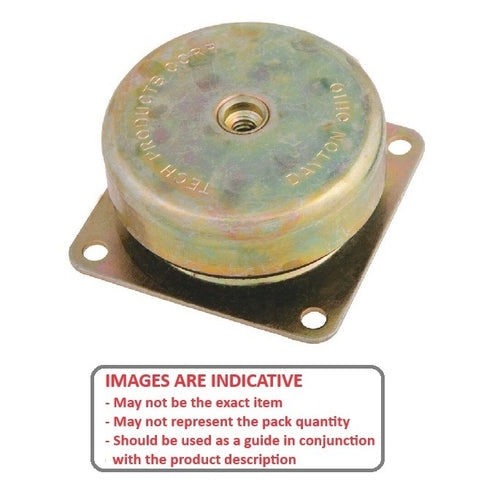

Mounts - Cup IndustrialCup Industrial Mounts. Protect against severe impact shock with efficient vibration isolation characteristics at frequencies above 40Hz.
- Can be mounted in any orientation for protection of sensitive electronic, electrical and mechanical equipment from high impact shocks.
Product Data
- Load Rating : 9.0 Kg

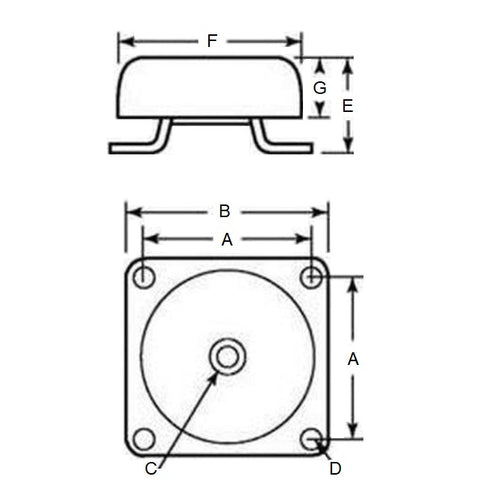

- Length (B)
60.452
mm
(Equiv. 2.38 in.) - Thread 1/4-20 UNC (6.35mm)
- Approx. Overall Height (E) 28.702 mm
- Mount Diameter (F) 57.912 mm
- Mount Height (G) 17.526 mm
- Bolt Centres (A) 49.276 mm
- Bolt Holes (D) 4.978 mm
Product Compliance and Data
Additional Resources
Cross References
- BCM-1010
- BCM1010
