K-0800-0700-5600A-C - Datasheet
ExaktKey
Category Information

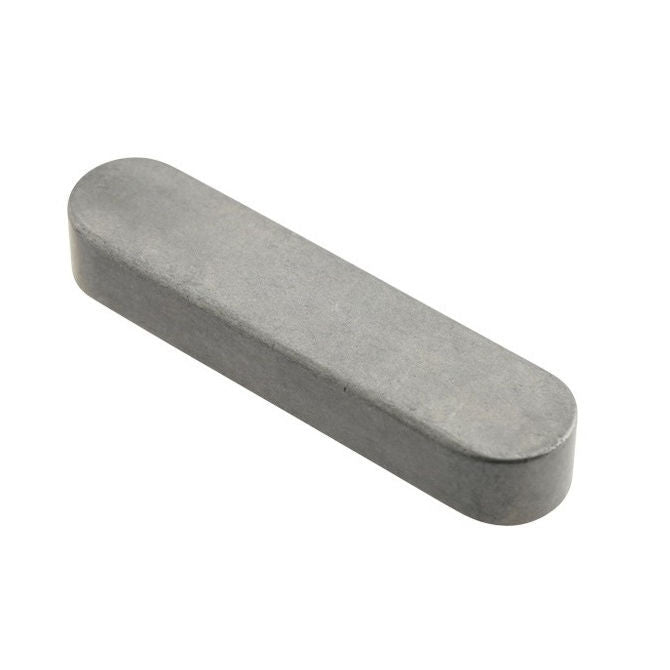

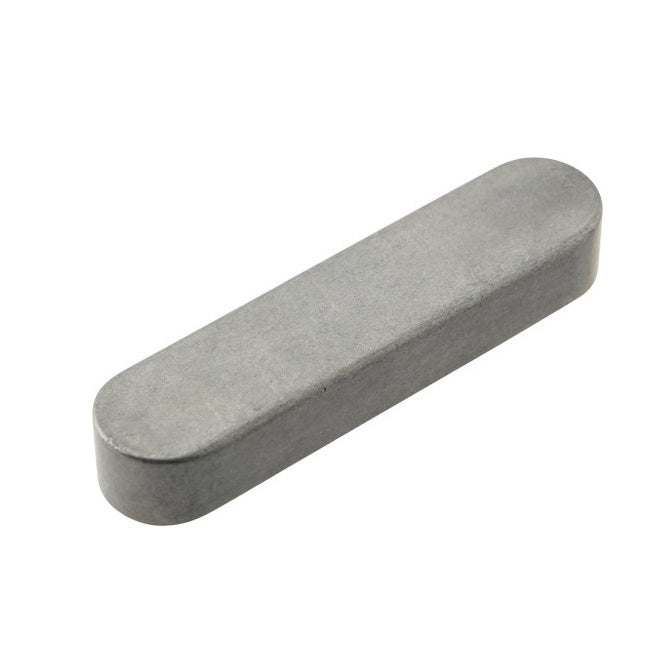

Keys - Machine - Carbon SteelCarbon Steel Machine Keys. Form A has rounded ends. Form B has square ends. Form AB has one end rounded and one end square. DIN6885
- An expanded range may be available on special order. Please enquire.
Product Data
- Width (W)
:
8.00
mm
+ 0 / - 0.036
(Equiv. 0.315 in.) - Height (h)
7.00
mm
+ 0 / - 0.030
(Equiv. 0.276 in.) - Length (L)
56.00
mm
+ / - 0.25
(Equiv. 2.205 in.) - Finish Plain
- Tolerance Type Standard Undersized
- End Type A (Rounded Ends)
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor 320807-056
- AUSKEY kmr0807-056a
- 320807056
- kmr0807056a
