PLIT-080-160-150-77-LKP-S3F - Datasheet

MBA

Category Information

Plungers - Indexing Pull Knob - Stainless - With Locking Slot

With Locking Slot Stainless Indexing Pull Knob Plungers. This is the main category in this series

    Product Data

    • Thread (B) : M16 Extra Fine (16x1.5mm)
    • Overall Length (A) 77.0 mm
      (Equiv. 3.031 in.)
    • Initial End Force 6.8 N
    • Final End Force 15.9 N
    • Tip Diameter (C) 8.0 mm
    • Tip Length (D) 8.0 mm
    • Hex Height (F) 10.0 mm
    • Knob Diameter (J) 33.0 mm
    • Hex Size (K) 19.0
    • Material Stainless Steel 303 (Similar to A2, 304, 18-8)
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP593
      • KBP-593
      View full details

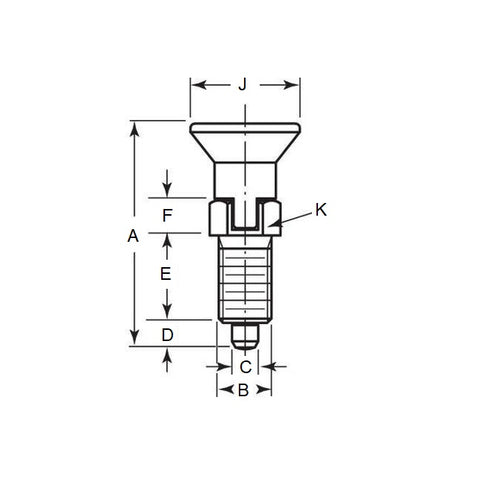

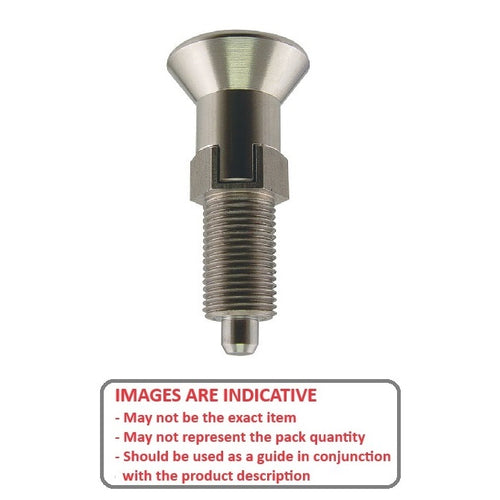

      PLIT-080-160-150-77-LKP-S3FDiagramPLIT-080-160-150-77-LKP-S3FImage
