PLIT-080-160-150-68-KPUN-S3 - Datasheet

MBA

Category Information

Plungers - Indexing Pull Knob - No Collar - Stainless and Plastic - With Nut

With Nut Stainless and Plastic No Collar Indexing Pull Knob Plungers. With thermoplastic knob

    Product Data

    • Thread (B) : M16 Extra Fine (16x1.5mm)
    • Overall Length (A) 68.0 mm
      (Equiv. 2.677 in.)
    • Initial End Force 6.8 N
    • Final End Force 15.9 N
    • Tip Diameter (C) 8.0 mm
    • Tip Length (D) 8.0 mm
    • Hex Height (F) 24.0 mm
    • Knob Diameter (J) 33.0 mm
    • Nut Size (L) 24.0
    • Material Stainless Steel 303 (Similar to A2, 304, 18-8)
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP-650
      • KBP650
      View full details

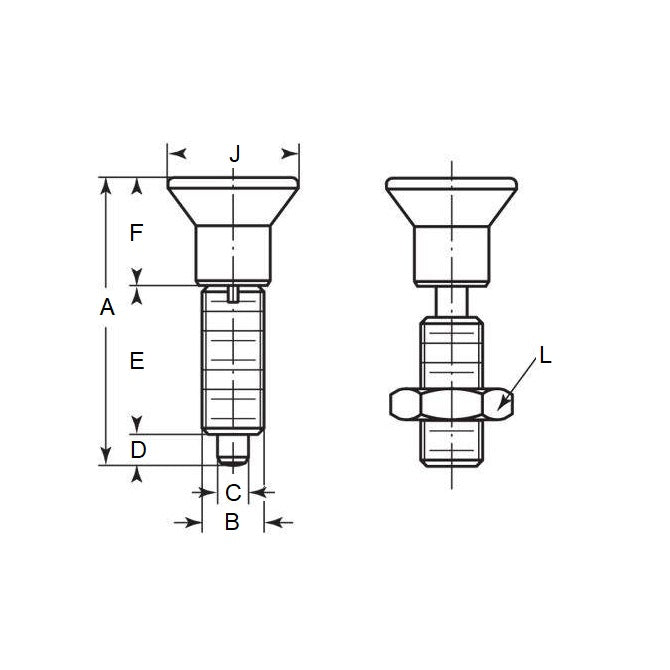

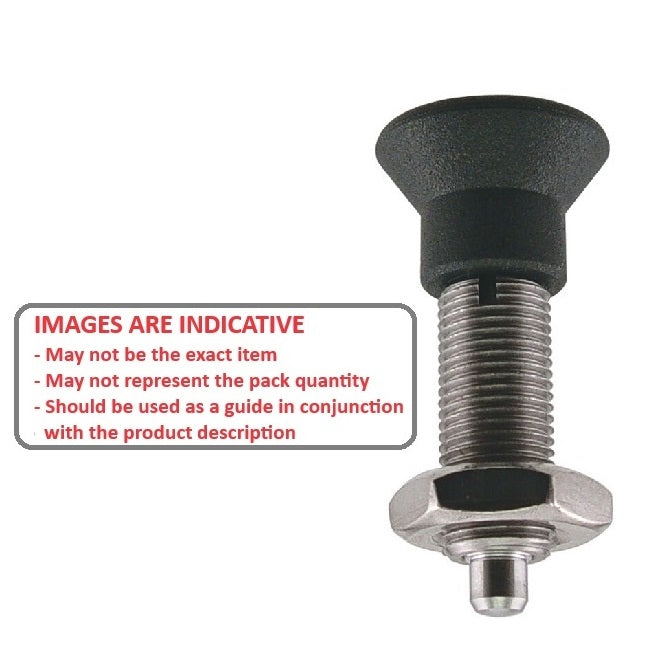

      PLIT-080-160-150-68-KPUN-S3DiagramPLIT-080-160-150-68-KPUN-S3Image
