PLIT-080-160-150-68-KPUN-C - Datasheet

MBA

Category Information

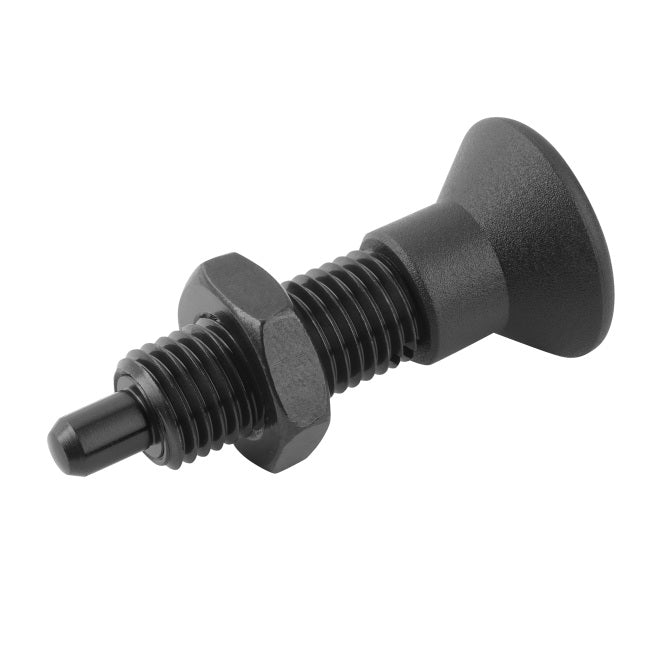

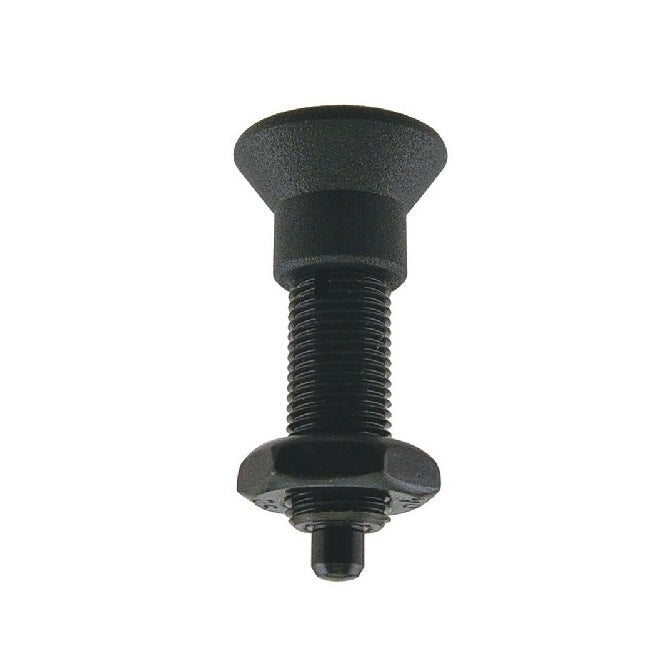

Plungers - Indexing Pull Knob - No Collar - Steel - With Nut

With Nut Steel No Collar Indexing Pull Knob Plungers. With thermoplastic knob

    Product Data

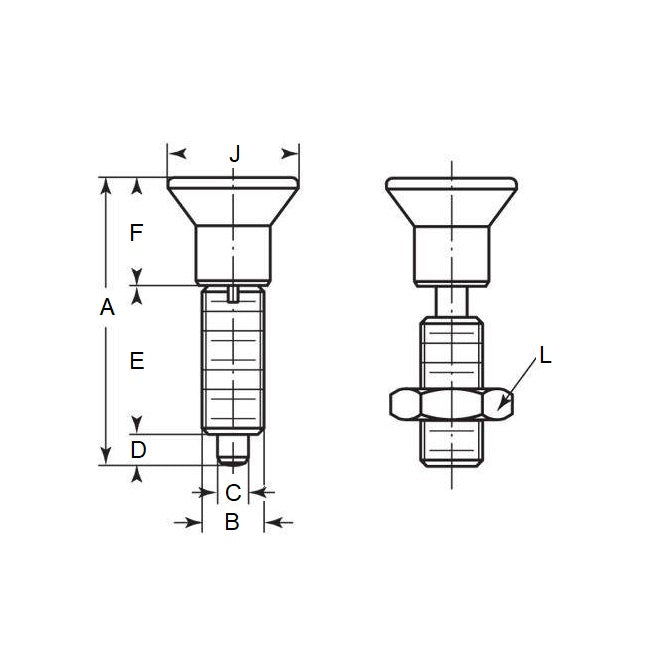

    • Thread (B) : M16 Extra Fine (16x1.5mm)
    • Overall Length (A) 68.0 mm
      (Equiv. 2.677 in.)
    • Initial End Force 6.8 N
    • Final End Force 15.9 N
    • Tip Diameter (C) 8.0 mm
    • Tip Length (D) 8.0 mm
    • Hex Height (F) 24.0 mm
    • Knob Diameter (J) 33.0 mm
    • Hex Size (L) 24.0
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP643
      • KBP-643
