LYP-R2-080-059-MZ - Datasheet
MBA
Category Information

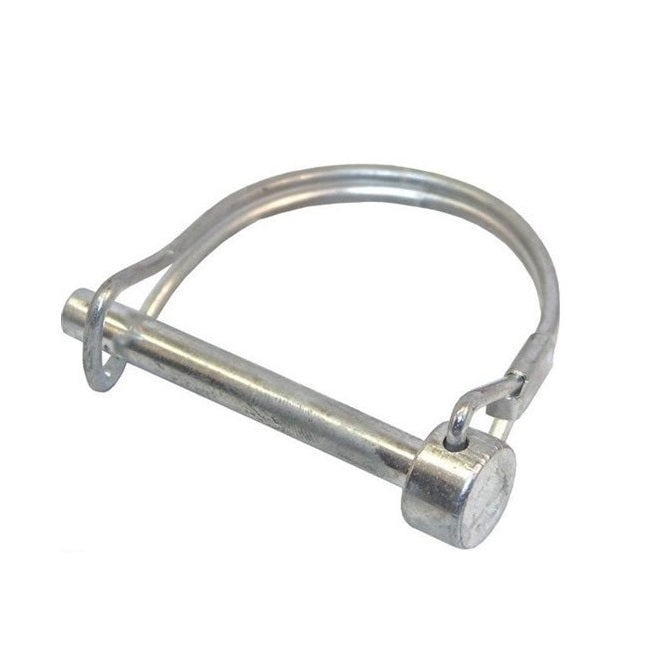

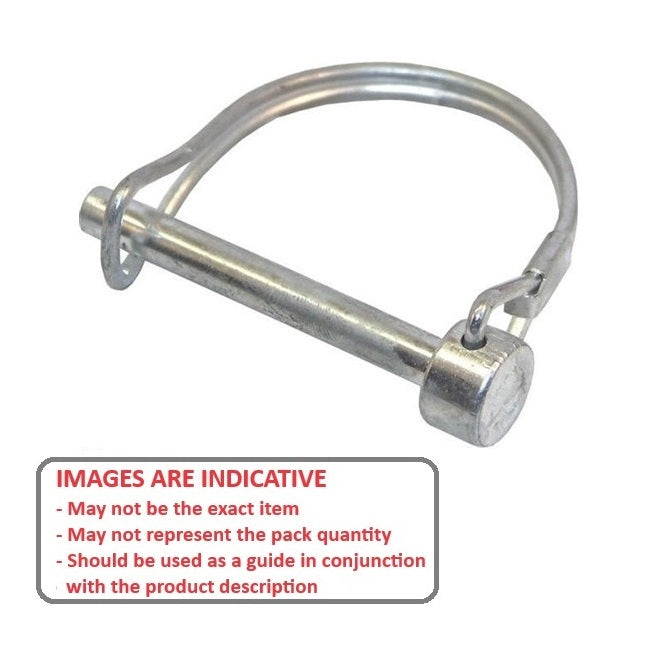

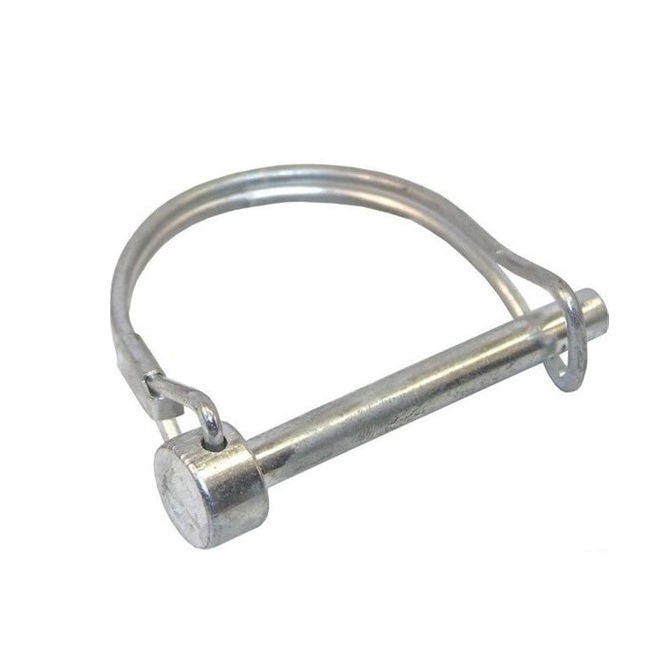

Pins - Wire Lock Lynch - Double Wire - Round - Mild SteelMild Steel Round Double Wire Wire Lock Lynch Pins. Also known as snapper pins
Product Data

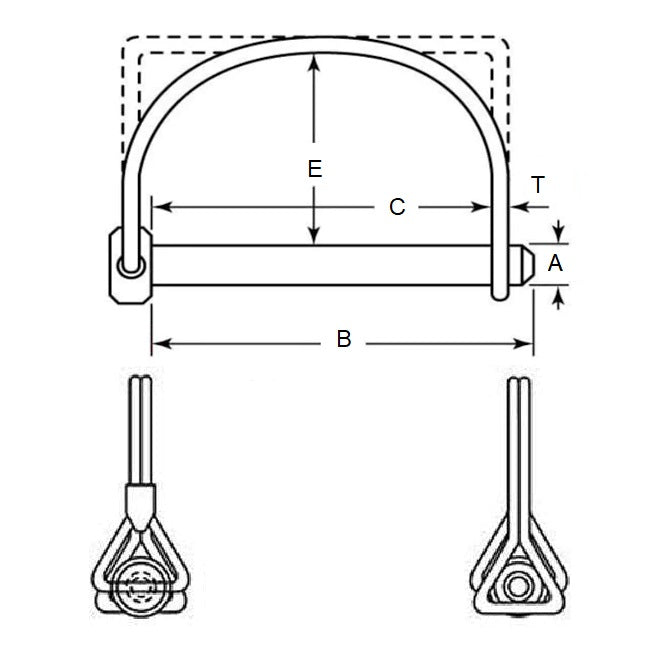

- Pin Diameter (A)
:
8.00
mm
- 0.051 / - 0.178
(Equiv. 0.315 in.) - Grip Length (C)
58.65
mm
+ 0.00 / - 6.35
(Equiv. 2.309 in.) - Wire Thickness (T)
2.1
mm
(Equiv. 0.083 in.) - Clearance To Wire (E) 37.0 mm
- Pin Length (B) 65.0 mm
- Finish Zinc Plated
- Material Steel - Mild Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- Hitech SLYP8
