KW-080-280-C - Datasheet
ExaktKey
Category Information

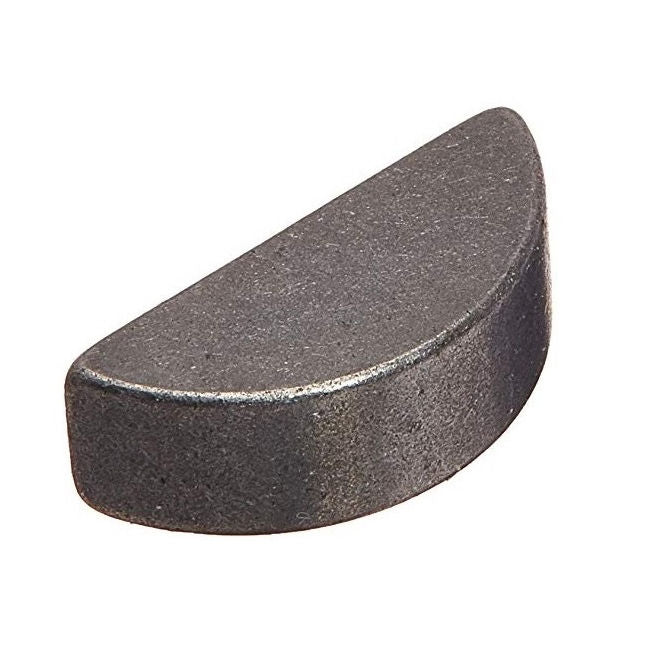

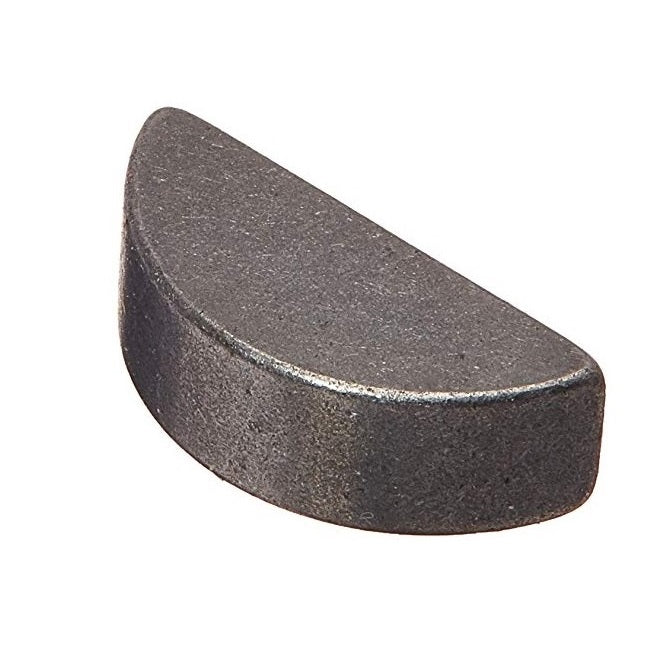

Keys - Woodruff - PlainPlain Woodruff Keys. Plain carbon steel
- An expanded range may be available on special order. Please enquire.
Product Data
- Thickness (S)
:
8.00
mm
+/- 0.025
(Equiv. 0.315 in.) - Basis Diameter (D)
28.00
mm
+/- 0.250
(Equiv. 1.102 in.) - Approx. Height (H)
11.0
mm
(Equiv. 0.433 in.) - Approx. Length (L) 27.35 mm
- Finish Plain
- Hardness HRB 80
- Material Carbon Steel C45
Product Compliance and Data
Additional Resources
Cross References
- 98490A300
- A9C49M08028
- KU828
- KU8-28
