608-2RS-MC3-NR - Datasheet
MBA
Category Information

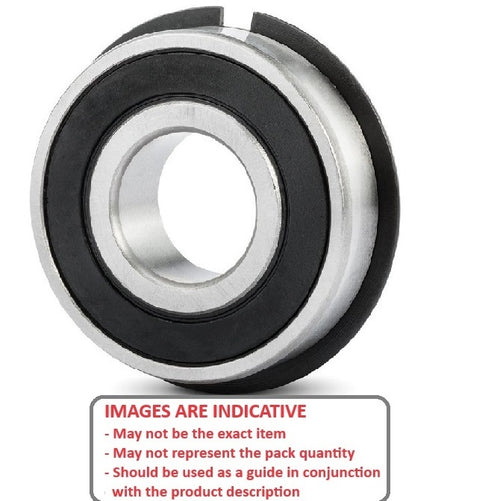

Bearings - Single Row Ball - with Snap Ring - Standard - Chrome SteelChrome Steel Standard with Snap Ring Single Row Ball Bearings. Chrome Steel Bearings with a Snap Ring on the OD
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with snap ring.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

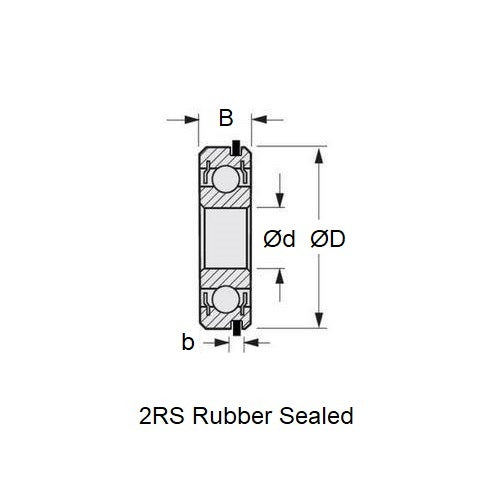

- ID (d)
:
8.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.315 in.) - OD (D)
22.000
mm
+ 0.000 / - 0.010
(Equiv. 0.866 in.) - Width (B)
7.000
mm
+ 0.000 / - 0.125
(Equiv. 0.276 in.) - Groove Width (b) 0.800 mm
- Closure Type 2RS
- Bearing Type Radial with Snp Ring
- Snap Ring Thickness 0.700 mm
- Max. Dist. To Groove Edge 2.350 mm
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 608
- Limiting Speed 23120
- Cage Type Ribbon
- Static Load Rating KGf 141
- Dynamic Load Rating KGf 336
- Radii 0.30 mm
- Inner Shoulder (UI) 10.50mm
- Outer Shoulder (UO) 19.03 mm
- Number of Balls 7
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type 2RS
- Max Temperature 80 Deg. C
