PSP-080-020-S2 - Datasheet
MBA
Category Information

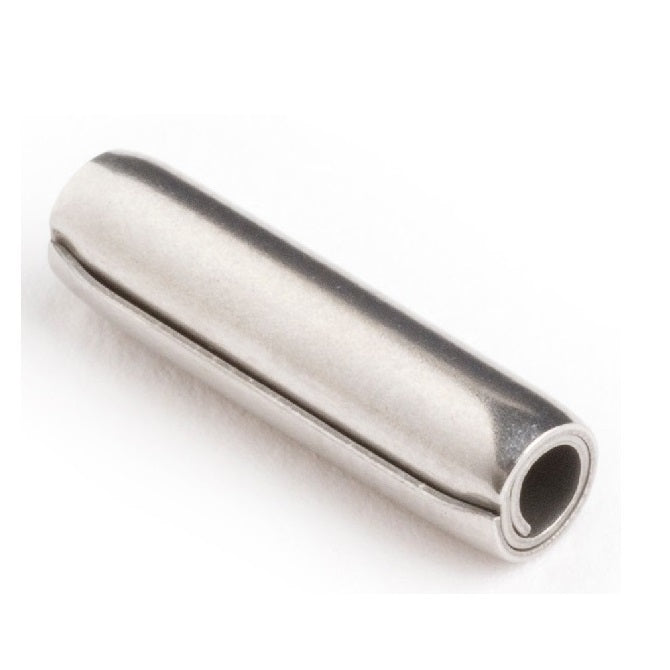

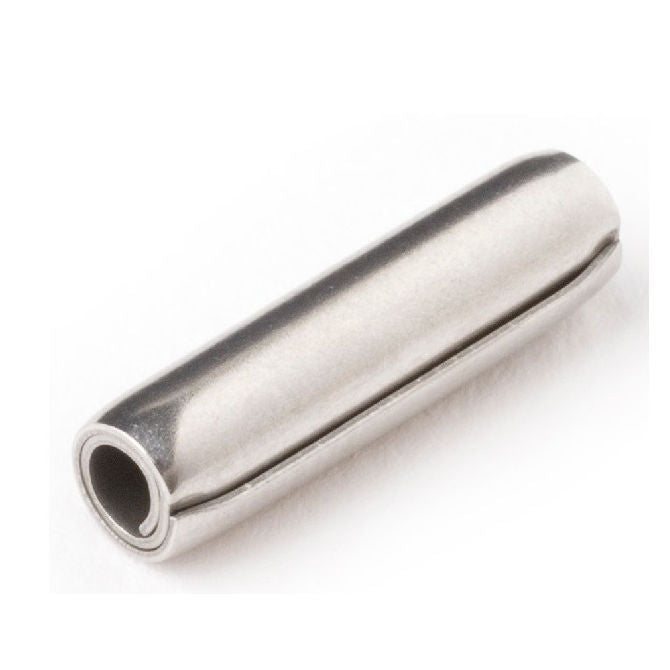

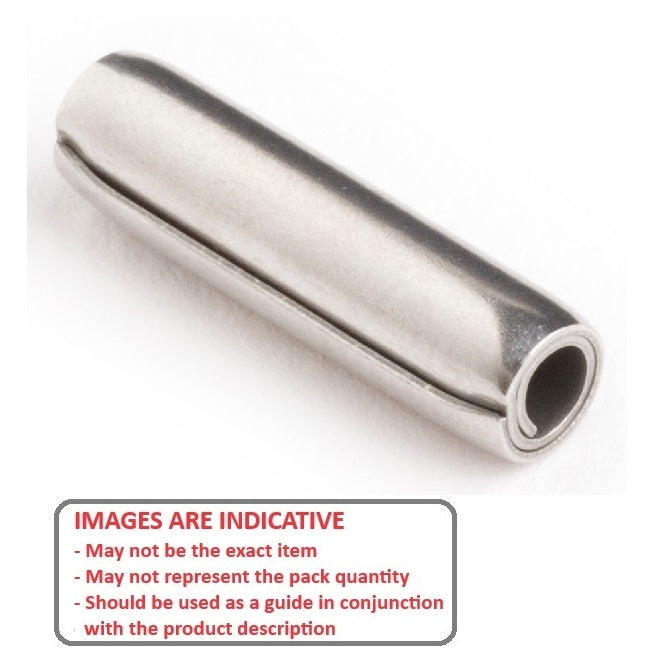

Pins - Coiled - Stainless - Standard DutyStandard Duty Stainless Coiled Pins. Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Hole Diameter
:
8.00
mm
(Equiv. 0.315 in.) - Length
20.00
mm
+/- 0.50
(Equiv. 0.787 in.) - Drill Size
8.00 - 8.15
mm
(Equiv. 0.315 in.) - Loose Diameter 8.30 - 8.63 mm
- ISO Standard Duty ISO8750 / ASME B18.8.3M
- Hardness Unhardened
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- NoCor SPCM3P-080-020
- SPCM3P080020
- EP8-20
- EP820
