W0080-F-019-032-N70 - Datasheet

MBA

Category Information

Washers - Flat - Commercial - Rubber

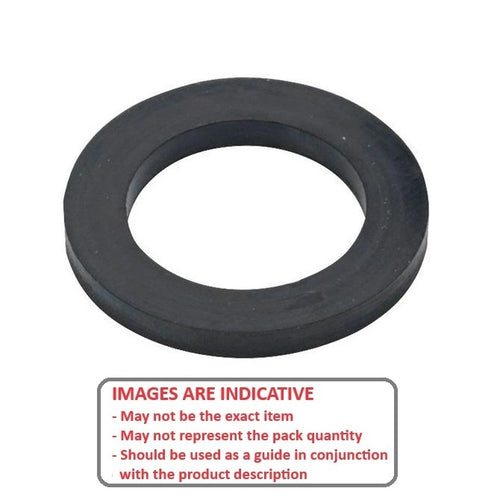

Rubber Commercial Flat Washers. These washers are all Nitrile Duro 70 Rubber.

  • Flat washers are available in many different materials, and can be used for spacing and shimming nuts and bolts, bearing shaft and all types of mechanical applications. An expanded range may be available on special order. Please enquire.
  • Flat plain washers distrubute the load of screws and other fasteners, which prevents the fastener from indenting the material being fastened. Commercial washers have wide tolerances, whilst precision washers have precise tolerances.
  • Washers also increase the surface area, reducing the risk of loosening. Note that the Nominal ID is the shaft, bolt or screw size that the washer is designed to fit over. The washer ID will have clearance on that size. See tolerances and standards listed.

Product Data

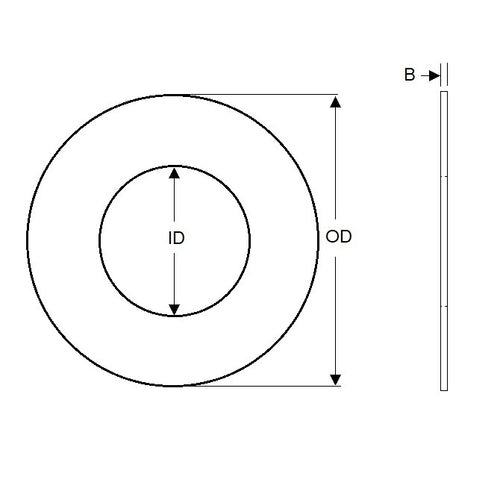

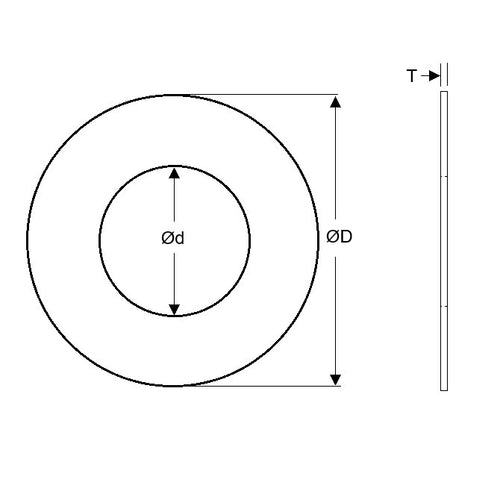

  • Nominal Inside Diameter (d) : 8.00 mm
    (Equiv. 0.315 in.)
  • Nominal Outside Diameter (D) 19.00 mm
    (Equiv. 0.748 in.)
  • Thickness (T) 3.20 mm
    (Equiv. 0.126 in.)
  • Material Buna N
Country of Origin: TW

Product Compliance and Data

Additional Resources

Cross References

  • S79RUBM08190
