W0080-CU-020-032-S3 - Datasheet
MBA
Category Information

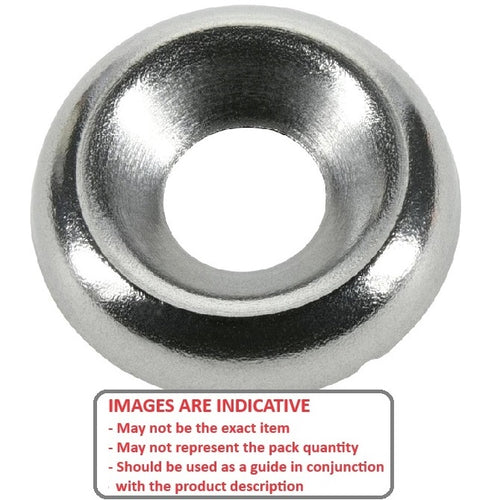

Washers - Cup - Stainless SteelStainless Steel Cup Washers. Stanless steel cup washer selection.
- Washers with a concave, cup-like shape, used with countersunk screws to provide a neat, finished look and evenly distribute the fastener's load.
- Protects softer materials from damage caused by the fastener head.
Product Data
Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

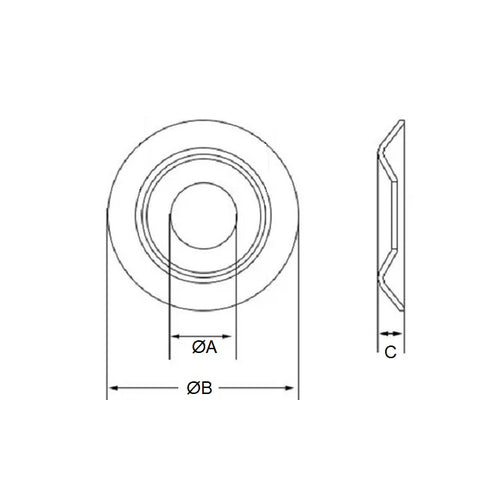

- Nominal Inside Diameter (A)
:
8
mm
(Equiv. 0.315 in.) - Nominal Outside Diameter (B)
19.80
mm
(Equiv. 0.78 in.) - Nom. Section (C)
3.20
mm
(Equiv. 0.126 in.) - Size M8, 5/16
- Actual ID (Ref) 8.2 mm
- Material Stainless Steel 303 PV (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- 98466A030
- ROC-8092-029
- ROC8092029
