COL-00800-016-08-S3 - Datasheet
MBA
Category Information

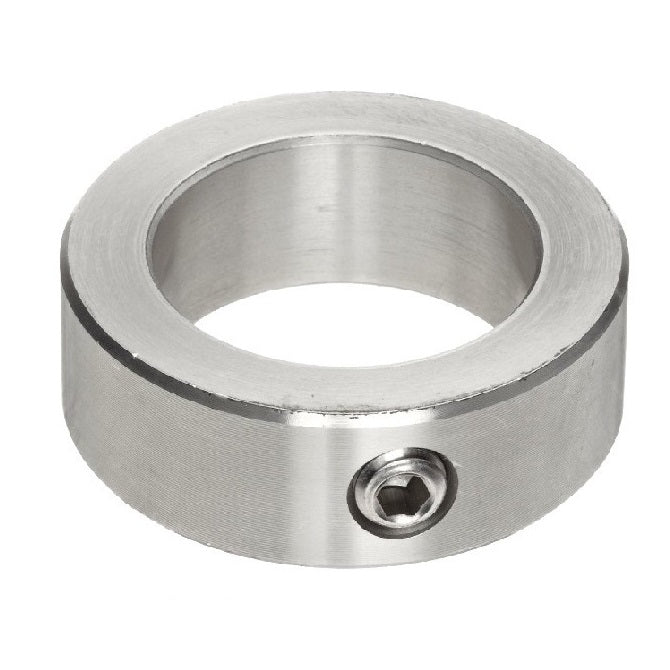

Collars - Shaft - Standard - Stainless SteelStainless Steel Standard Shaft Collars. Includes miniature precision types. 303 and 316 Types.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
8.000
mm
(Equiv. 0.315 in.) - Outside Diameter (D)
16.00
mm
(Equiv. 0.63 in.) - Overall Width (S)
8.0
mm
(Equiv. 0.315 in.) - Collar Style Plain Collar
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- 57485K24
- A7X2M116080
