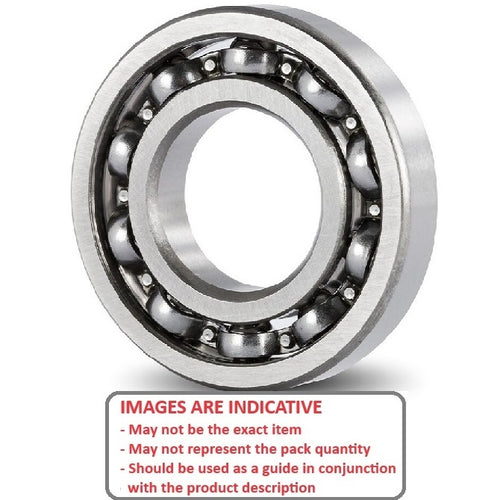

S688-MC3-AF12 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

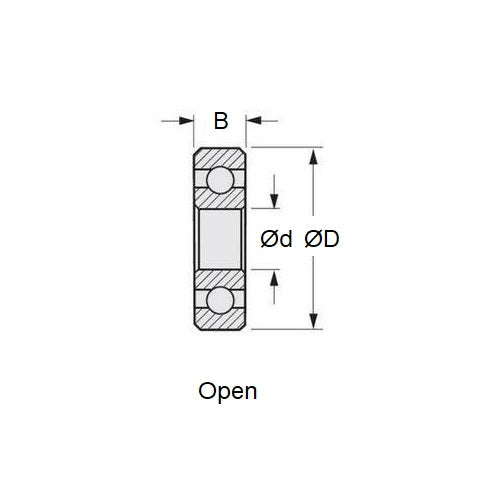

- ID (d)
:
8.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.315 in.) - OD (D)
16.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.63 in.) - Width (B)
4.000
mm
+ 0.000 / - 0.125
(Equiv. 0.157 in.) - Precision Grade Abec 1
- Closure Type Open
- Bearing Type Radial
- Material Stainless Steel AISI 440C
- Lubrication Type Oil
- Lubrication Name AF12 Aeroshell Fluid 12
- Basic Part 688
- Limiting Speed 43000
- Cage Type Ribbon
- Static Load Rating KGf 60
- Dynamic Load Rating KGf 128
- Radii 0.20 mm
- Inner Shoulder (UI) 10.50mm
- Outer Shoulder (UO) 13.50 mm
- Number of Balls 10
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type Open
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- Fishing Reel Parts
- RC Nitro Engine Parts
- Daiwa - Theory 4000 - Lower Pinion Bearing 8-16-4mm
- Daiwa - Theory 4000 - Upper Pinion Bearing 8-16-4mm
- Jarvis Walker - Inazuma 85 Graphite - Bearing 8-16-4mm
- Moki - C - 120 - Bearing 8-16-4mm
- Norvel - 15 All Models - Bearing 8-16-4mm
- Russian - KC - 46 - Bearing 8-16-4mm
Cross References
- Similar Part 688H
- Stainless 688MC3AF12
- Stainless 688-MC3-AF12
- GRW S688
- GRW SS688
- Similar Part SS688
- ADR WX8
- Similar Part WX8
- UL816X
- DD-L1680
- DDL1680
- SSL1680
- SS-L1680
- 688 Basic Size Ref
