S688-MC34-GR7-R-L23 - Datasheet

Myonic

Category Information

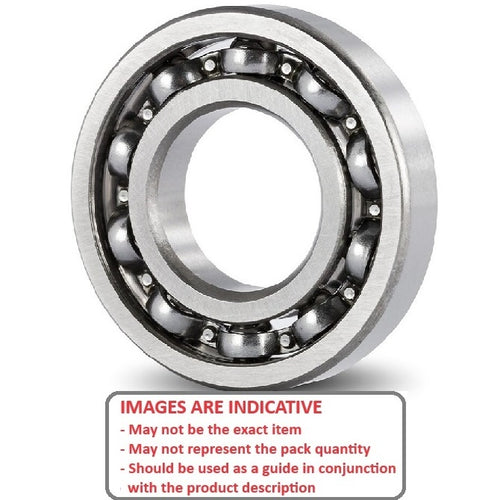

Bearings - Single Row Ball - Unflanged - High Precision - Standard

Standard High Precision Unflanged Single Row Ball Bearings. Stainless Steel Bearings - Abec 5 and Abec 7.

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
  • Single row radial ball bearings.
  • High precision bearings are not recommended for skates or fishing reels.
  • High precision bearings are used in accurately balanced application such as spindles, gyros and medical equipment.
  • If your application is not of a precision nature, standard bearings may be more suitable (and less expensive).

Product Data

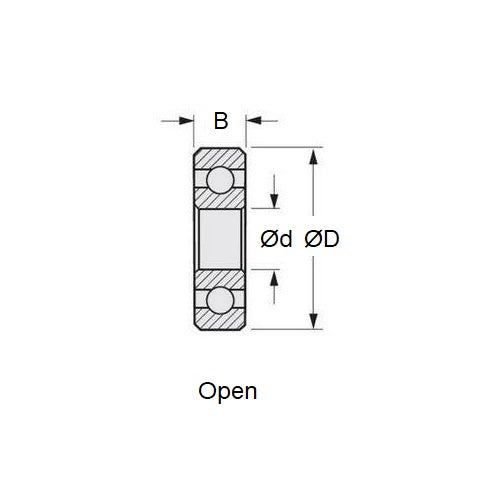

  • ID (d) : 8.000 mm + 0.000 / - 0.004
    (Equiv. 0.315 in.)
  • OD (D) 16.000 mm + 0.000 / - 0.005
    (Equiv. 0.63 in.)
  • Width (B) 4.000 mm + 0.000 / - 0.040
    (Equiv. 0.157 in.)
  • Precision Grade Abec 7
  • Closure Type Open
  • Bearing Type Radial
  • Lubricant Windsorlube L245X - L23 Oil
  • Material Stainless Steel AISI 440C - Ribbon Retainer Low Torque
  • Lubrication Type Oil
  • Lubrication Name L23 Windsorlube L245X
  • Basic Part 688
  • Limiting Speed 55900
  • Cage Type Ribbon
  • Static Load Rating KGf 60
  • Dynamic Load Rating KGf 128
  • Radii 0.20 mm
  • Inner Shoulder (UI) 10.50mm
  • Outer Shoulder (UO) 13.50 mm
  • Number of Balls 10
  • Clearance MC34 (5 to 10)
  • Precision Grade Abec 7
  • Closure Type Open
  • Max Temperature 170 Deg. C
Country of Origin: DE

Product Compliance and Data

Additional Resources

Cross References

  • GRW 688-P4
  • GRW S688-P4
  • P4S688
  • P4688
  • P4-688
  • P4-S688
  • 688P4
  • UL816X-A7P-L23
  • UL-816X-48-A7P-6/15-L23
  • UL816XA7PL23
  • UL816X48A7P6/15L23
  • S688MC3GR7L23
  • S688RGR7MC34L23
  • S688P4
  • 688 Basic Size Ref
