PLIT-080-160-150-74-LKP-C - Datasheet

MBA

Category Information

Plungers - Indexing Pull Knob - Steel - With Locking Slot

With Locking Slot Steel Indexing Pull Knob Plungers. With thermoplastic knob

    Product Data

    • Thread (B) : M16 Extra Fine (16x1.5mm)
    • Overall Length (A) 74.0 mm
      (Equiv. 2.913 in.)
    • Initial End Force 15.9 N
    • Final End Force 6.8 N
    • Tip Diameter (C) 8.0 mm
    • Tip Length (D) 8.0 mm
    • Hex Height (F) 10.0 mm
    • Knob Diameter (J) 33.0 mm
    • Hex Size (K) 19.0
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP610
      • KBP-610
      View full details

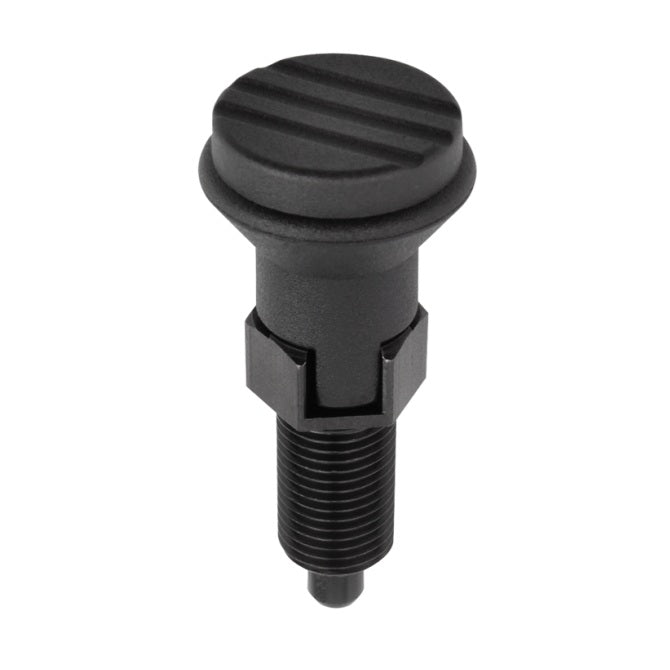

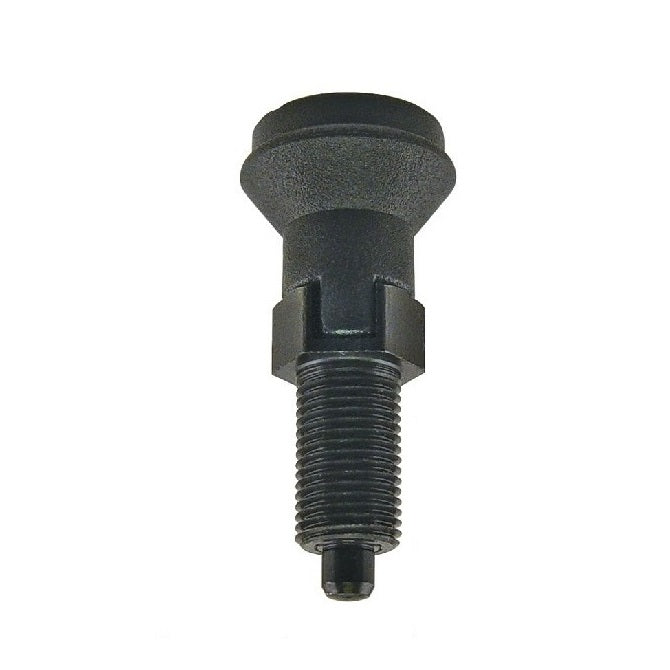

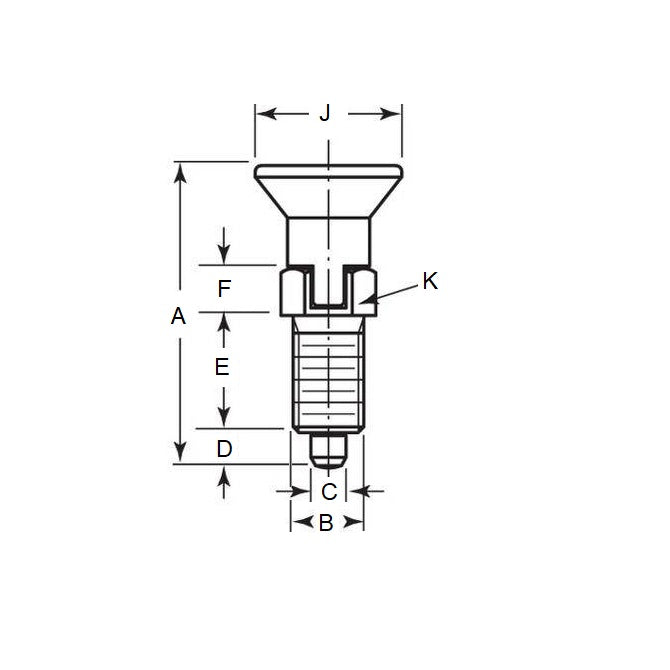

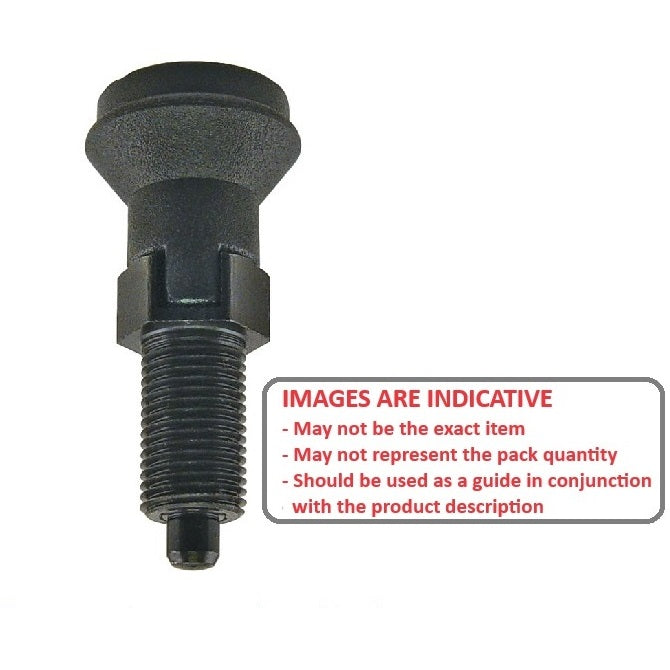

      PLIT-080-160-150-74-LKP-CDiagramPLIT-080-160-150-74-LKP-CImage
