AD05215AD - Datasheet
MBA
Category Information

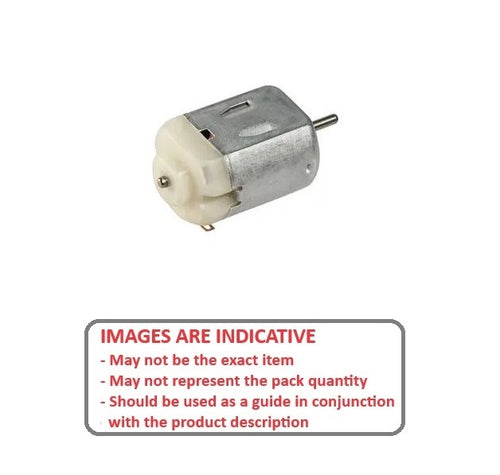

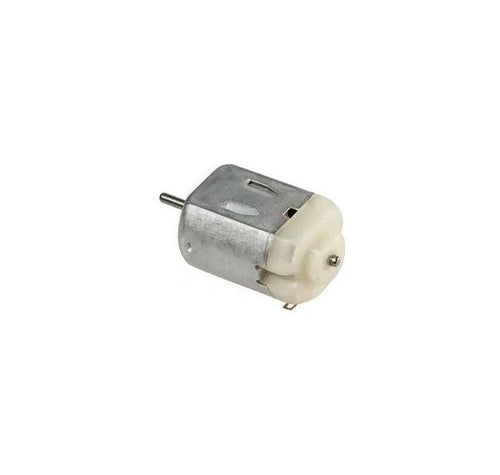

Motors - DC - 8.0X10.0 mm8.0X10.0 mm DC Motors. 3.5V - 20500 RPM
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category will only be available for very large orders.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Body Diameter
:
8.0
mm
(Equiv. 0.315 in.) - Overall Length
10.0
mm
(Equiv. 0.394 in.) - Operating Voltage 3.5 V
- Nominal Voltage 3.0 V
- Shaft Size 1.0 mm
- Body Type Rounded with flat top and bottom
- Current (No Load/Max Effic) 0.057 / 0.120 amps
- Speed (No Load) 20500 RPM
- Speed (Max Efficiency) 13870 RPM
- Direction Reversible
- Torque (Max Effic) 0.63 g-cm
- Torque (Stall) 1.9 g-cm
