PLIT-080-158C-74-LK-S3 - Datasheet
MBA
Category Information

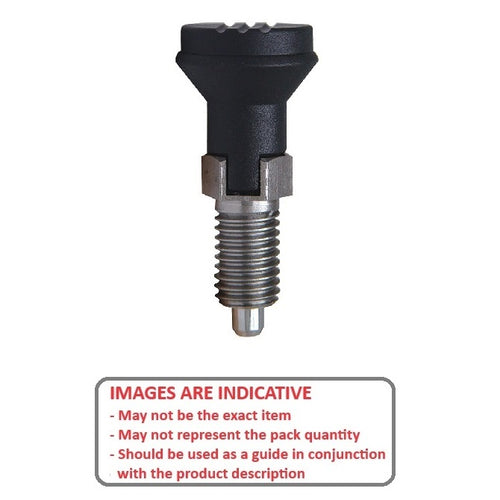

Plungers - Indexing - Locking - With Knob -StainlessWith Knob -Stainless Locking Indexing Plungers. Used to prevent change in locking position due to shearing force. Spring loaded for use in fastening, locating and indexing on equipment, tooling and other applications.
- 303 Stainless Steel

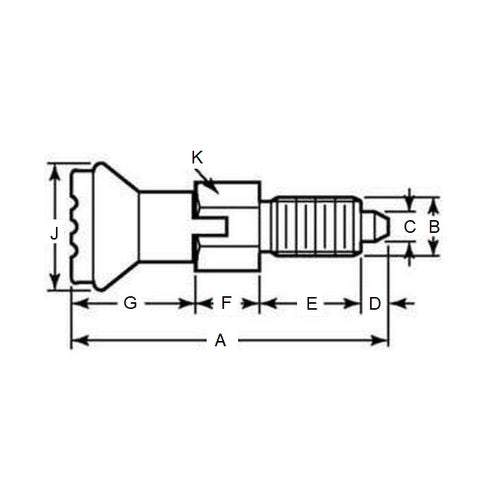

Product Data
- Thread (B) : 5/8-11 UNC (15.88mm)
- Thread Length (E)
26.0
mm
(Equiv. 1.024 in.) - Initial End Force 1.5 N
- Final End Force 3.6 N
- Tip Diameter (C) 8.0 mm
- Tip Length (D) 7.9 mm
- Handle Length (G) 30.0 mm
- Hex Diameter (K) 19.1
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- GIP-95
- GIP95
