PLIT-080-200-250-20-G-S3-N - Datasheet

MBA

Category Information

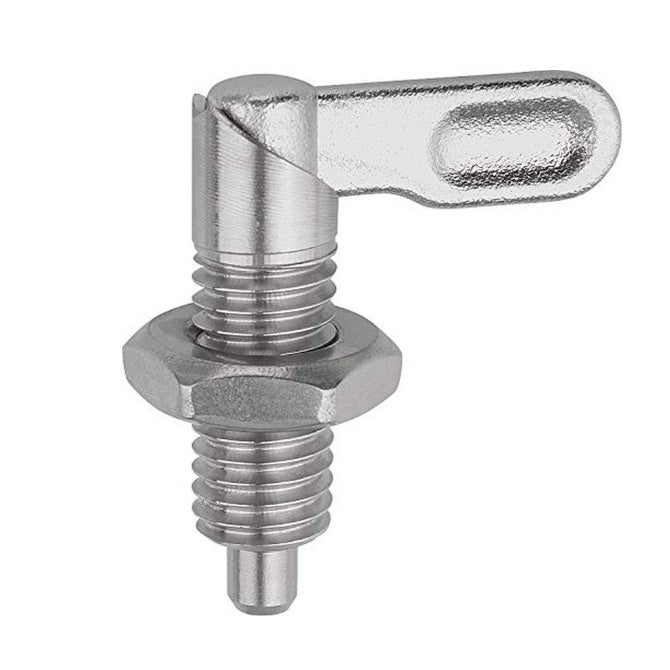

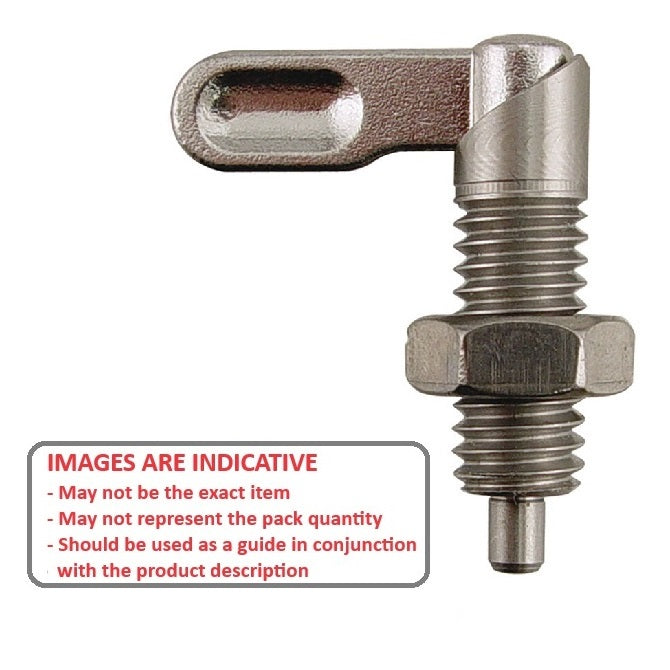

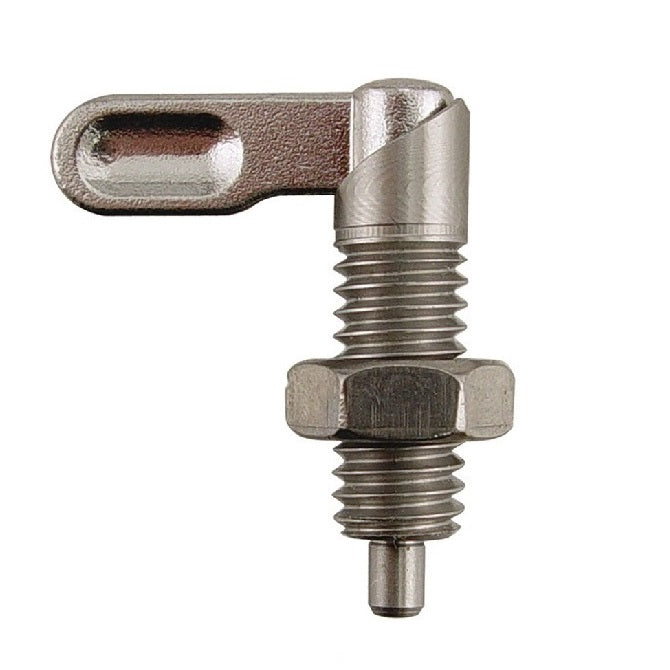

Plungers - Indexing - Grip - Stainless - With Nut

With Nut Stainless Grip Indexing Plungers. Grip is held in a notch in the fully retracted position. In this position the locking pin does not project from the body at all.

    Product Data

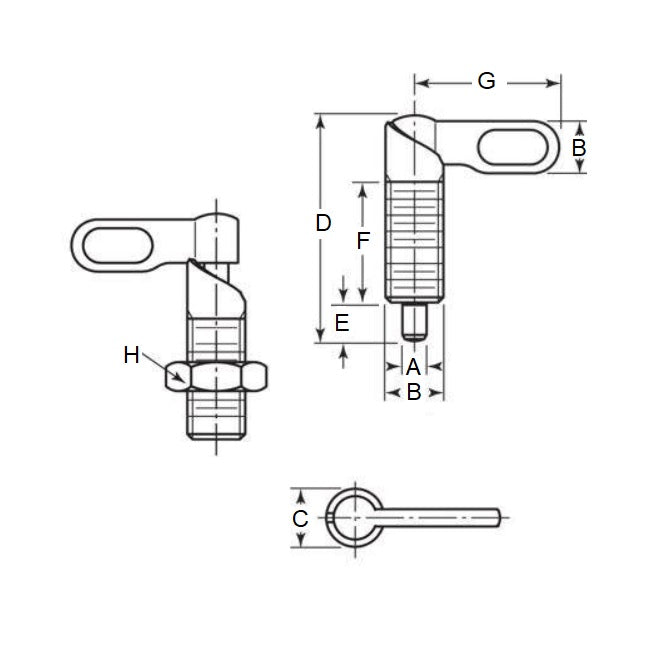

    • Thread (B) : M20 (20x2.5mm)
    • Thread Length (F) 35.0 mm
      (Equiv. 1.378 in.)
    • Initial End Force 0.8 N
    • Final End Force 2.0 N
    • Tip Diameter (A) 8.0 mm
    • Tip Length (E) 12.0 mm
    • H 60.0
    • Handle Length (G) 50.0 mm
    • Material Stainless Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP856
      • KBP-856
