PLIT-080-200-150-20-G-C-N - Datasheet

MBA

Category Information

Plungers - Indexing - Grip - Steel - With Nut

With Nut Steel Grip Indexing Plungers. Grip is held in a notch in the fully retracted position. In this position the locking pin does not project from the body at all.

    Product Data

    • Thread (B) : M20 Extra Fine (20x1.5mm)
    • Thread Length (F) 35.0 mm
      (Equiv. 1.378 in.)
    • Initial End Force 0.8 N
    • Final End Force 2.0 N
    • Tip Diameter (A) 8.0 mm
    • Tip Length (E) 12.0 mm
    • H 30.0
    • Handle Length (G) 50.0 mm
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP-763
      • KBP763
      View full details

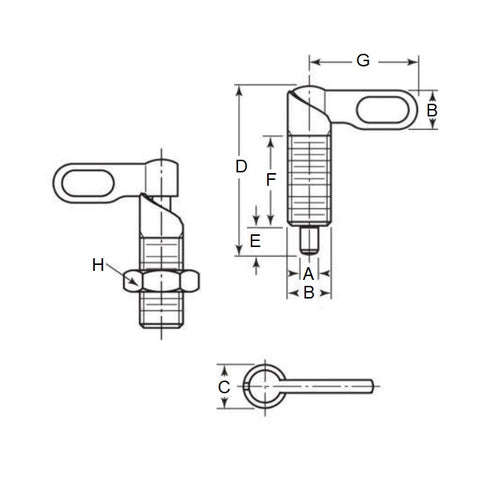

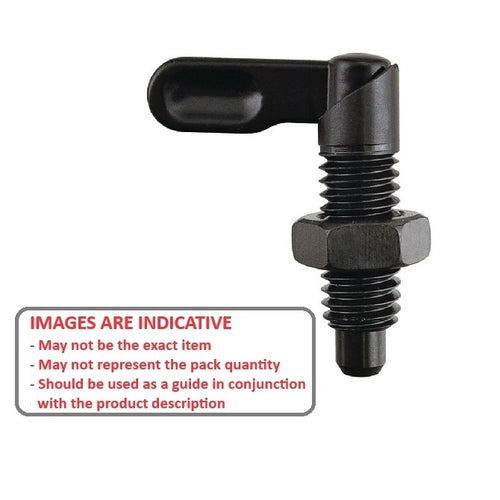

      PLIT-080-200-150-20-G-C-NDiagramPLIT-080-200-150-20-G-C-NImage
