PLIT-080-160-200-16-G-S3-N - Datasheet

MBA

Category Information

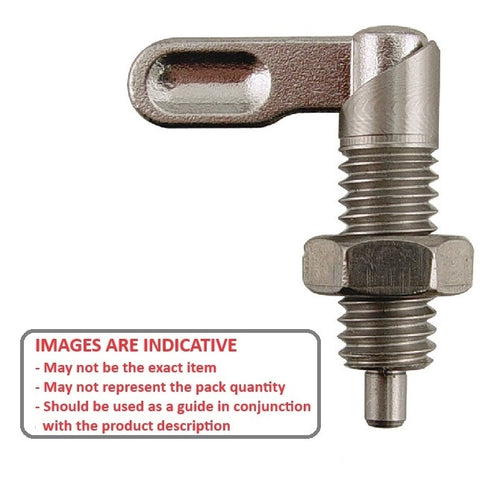

Plungers - Indexing - Grip - Stainless - With Nut

With Nut Stainless Grip Indexing Plungers. Grip is held in a notch in the fully retracted position. In this position the locking pin does not project from the body at all.

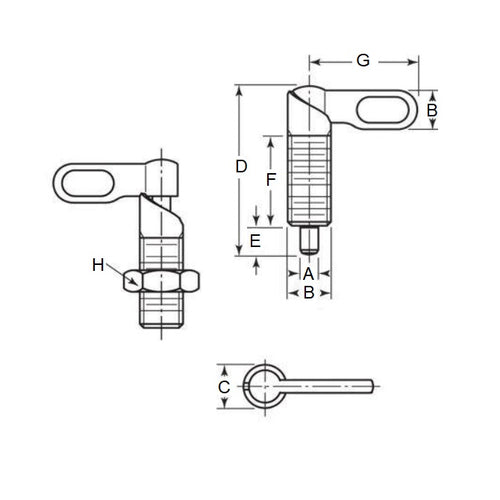

    Product Data

    • Thread (B) : M16 (16x2mm)
    • Thread Length (F) 32.0 mm
      (Equiv. 1.26 in.)
    • Initial End Force 0.8 N
    • Final End Force 1.5 N
    • Tip Diameter (A) 8.0 mm
    • Tip Length (E) 10.0 mm
    • H 35.0
    • Handle Length (G) 40.0 mm
    • Material Stainless Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP-851
      • KBP851
