Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel

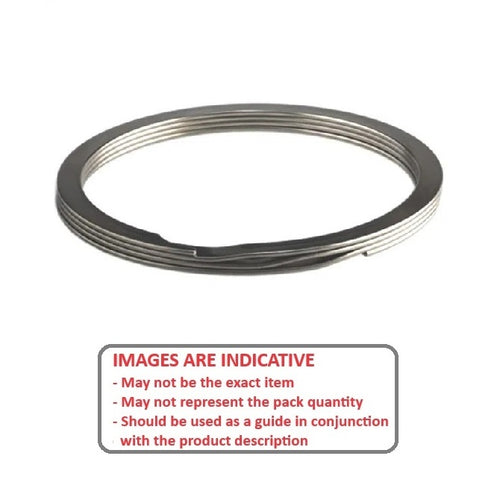

Carbon Steel Heavy Duty Spiral Rings Internal Retaining Rings. Includes AHI / WHM / AS3215 / RRN / MIL-R-27426B2 - Spring Steel

  • An expanded range may be available on special order. Please enquire.
  • Heavy duty design for use with NAS669-670 deep grooves in applications like double row and tapered roller bearings.
  • Requires no tools for removal.
  • Equivalent to Associated Spring: AHI, Smalley: WHM, Spirolox and Ramsey: RRN, Aerospace AS3215, MIL-R-27426B2

Product Data

  • Housing Bore (B) : 89.99 mm
    (Equiv. 3.543 in.)
  • Clip Thickness (T) 2.82 mm +/- 0.08
    (Equiv. 0.111 in.)
  • Groove Dia. (Dg) 95.38 mm
    (Equiv. 3.755 in.)
  • Approx. Loose Circlip OD (Dr) 96.02 mm + 0.89 / - 0.00
  • Radial Wall (S) 7.14 mm +/- 0.13
  • Groove Width (W) 3.12 mm +/- 0.16
  • Approx. Loose Clip ID 81.74 +/- 0.07
  • Groove Depth (d) 2.69
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Associated Spring AHI-354
  • Smalley RRN-354
  • Spirolox RRN-354
  • Seeger WHM-354
  • Smalley WHM-354
  • WHM354
  • RRN354
  • AHI354
