F204 - Datasheet
MBA
Category Information

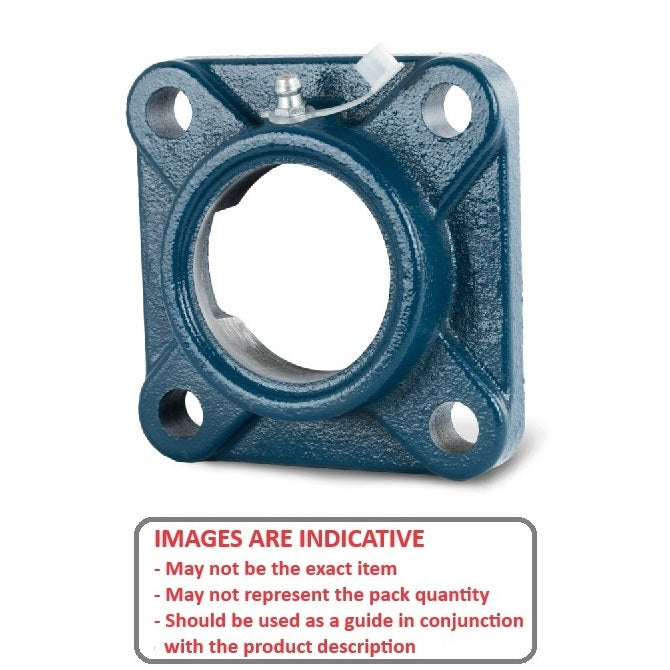

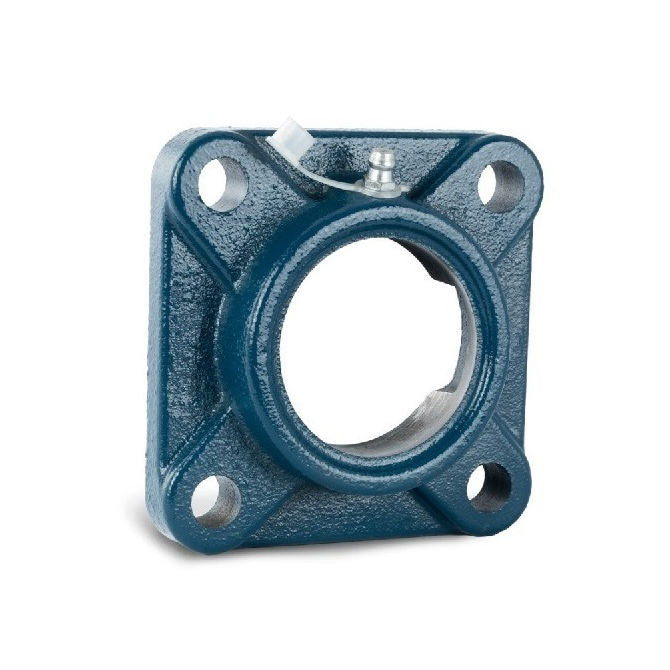

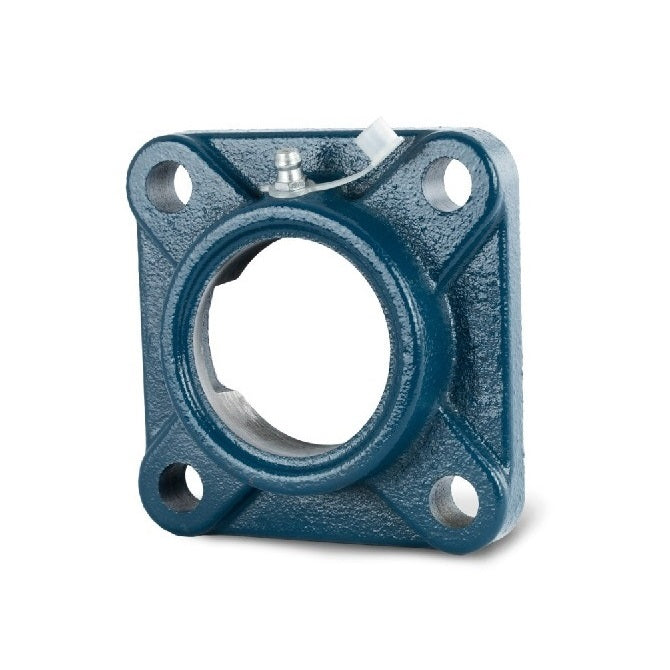

Housings - Flanged Square Cast IronFlanged Square Cast Iron Housings. Lubrication Groove.
- An expanded range may be available on special order. Please enquire.
- Bearings sold separately.
- Larger sizes available on request.
- Use with steel bearing inserts for cast iron housings.
Product Data
- Height (H)
:
86.000
mm
(Equiv. 3.386 in.) - Width - Assembled (W)
33.300
mm
(Equiv. 1.311 in.) - Base Width (A1)
12.000
mm
(Equiv. 0.472 in.) - Bolt Hole Centres (J) 64.000 mm
- Housing Width (hW) 25.500 mm
- Bearing Width (B) 31.000 mm
- To Suit Bearing UC201 - UC202 - UC203 - UC204
- Bolt Hole Size (s) 12.000 mm
- Material Cast Iron
Product Compliance and Data
Additional Resources
Cross References
- Nachi F204J
