WLB085-118-12BO - Datasheet
MBA
Category Information

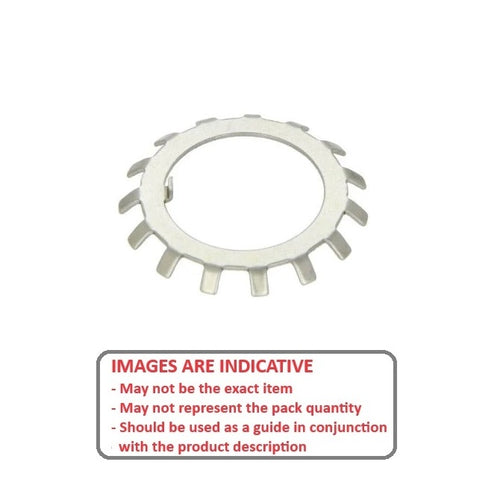

Washers - Lock - Tabbed - for Bearing Locknutsfor Bearing Locknuts Tabbed Lock Washers. This category includes equivalents to AW, W, TW, MB, WH and WT types.
- Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
- Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
- Dimensions are nominal and may vary between batches.
- For use with bearing lock nuts
Product Data

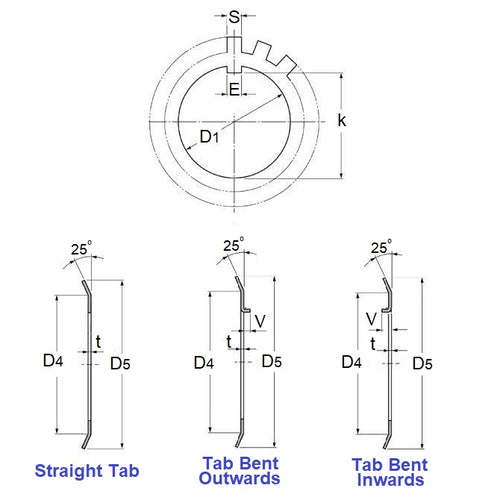

- Approximate ID (D1) : 85.00 mm
- Approx OD (D5) 117.5 mm
- Tabs 19 Nr.
- thickness (t) 1.2 mm
- Matching Locknut N-17
- Inner Tab Type Bent Outwards
- Series W / Standard Duty
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Huyett® W-17
- W17
