Miniature Bearings Australia
MG-D33S12M1200144 - Datasheet
MBA
Category Information
Gearmotors - DC - Size 12Size 12 DC Gearmotors. 12mm Gearhead Body Diameter.
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category will only be available for very large orders.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Rated Output Speed : 85 RPM
- Rated Torque 7.8 (1.1) N.mm (oz.in)

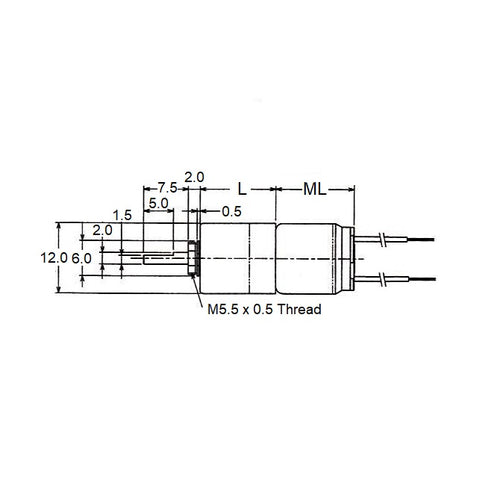

- Gearhead Body Lgth (L)
15.6
mm
(Equiv. 0.614 in.) - Gear Ratio 144 : 1
- Motor Length (ML) 12.0 mm
- Rated Voltage 3 V
- Output Shaft Diameter 2.0 With Flat mm
- Housing Material Stainless Steel
- Shaft Material Carbon Steel
- Bearing Material Steel with Acetal Input / Bronze
Product Compliance and Data
Additional Resources
Cross References
- Sayama SCR12BG-1301-03
- Sayama SCR12BG-1301-031-143
- SCR12BG1301031143
- D33S12M1200144
