B-100T-0085-0300-NFB - Datasheet
MBA
Category Information

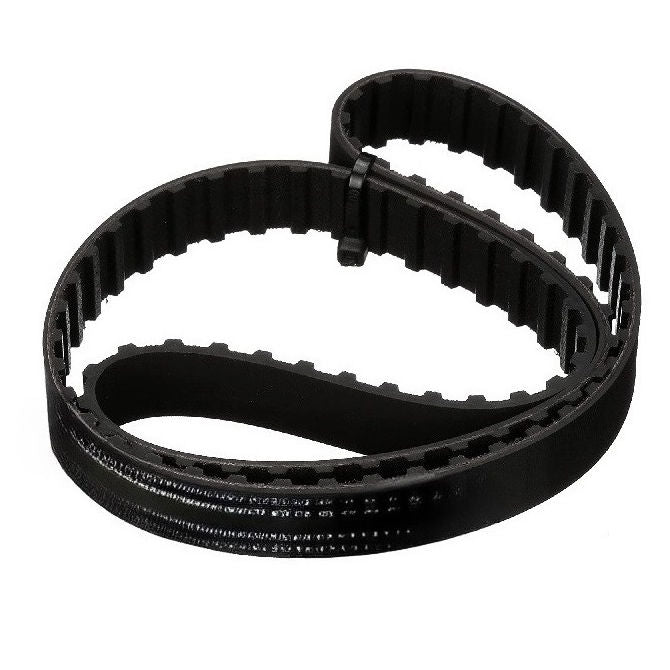

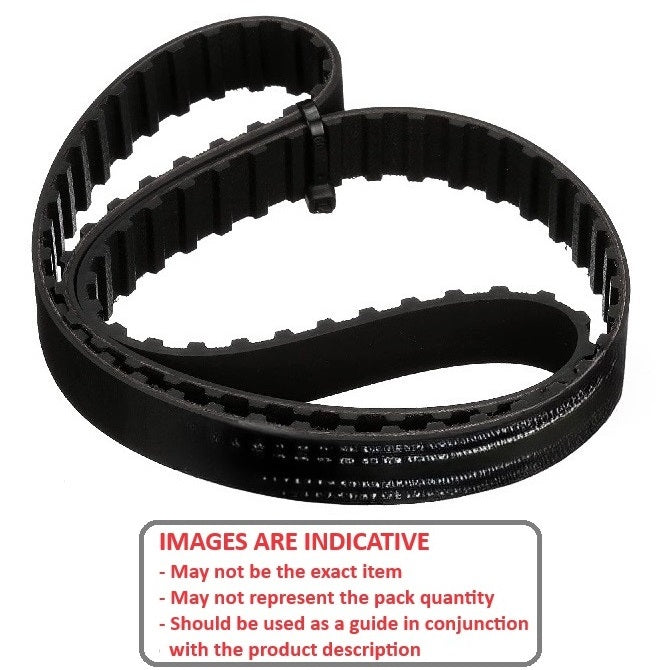

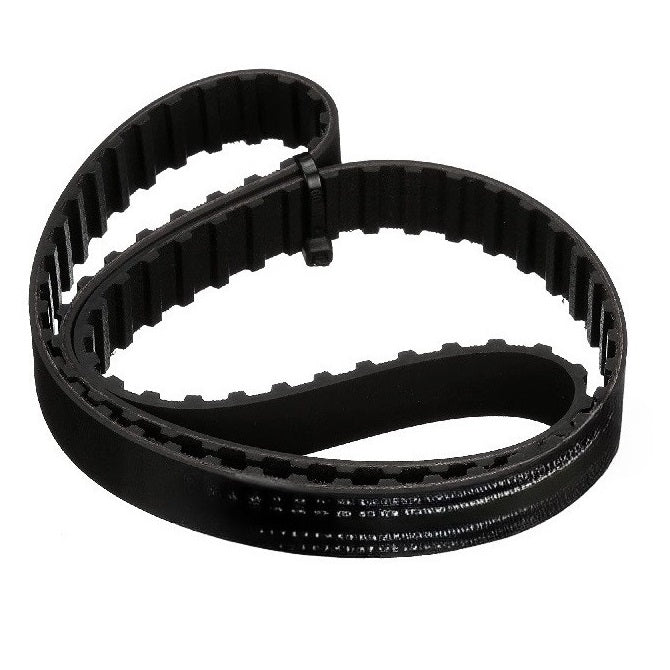

Belts - Timing 10.000mm Pitch - T10 - 30mm Wide30mm Wide T10 Timing 10.000mm Pitch Belts. T Series 10mm Metric Timing Belts.
- Timing belts combined with timing pulleys, provide power transmission without slippage.
- Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
- Tooth Length (T) - 3.25mm
- Tooth Height (H) - 2.5mm
- Belt Height (W) - 4.5mm - Corner Radii ( r )- 0.6mm
- Pitch (P) - 10mm
Product Data
- Number of Teeth : 85
- Length
850
mm
(Equiv. 33.465 in.) - Width
30.0
mm
(Equiv. 1.181 in.) - Reinforcement Fibre Glass
- Appearance Black
- Min Temperature (C) -30 Deg C
- Max Temperature (C) 90 Deg C
- Material Nylon Covered Neoprene with Fibreglass Cords
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-TTBN850T10-300
- CTTBN850T10300
