MSKMA40X12RS - Datasheet
MBA
Category Information

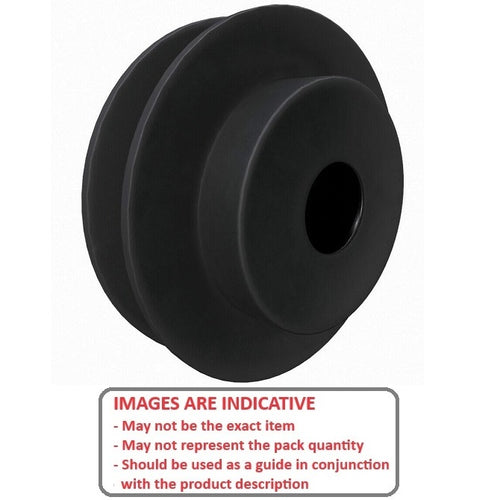

Pulleys - Vee - A or 4L - Single Row Through Bore - Cast IronCast Iron Single Row Through Bore A or 4L Vee Pulleys. Dual purpose pulleys suit A section and M section belts
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
- To determine the pitch diameter for M section deduct 8.636mm (0.34 inch) from the pitch diameter listed
Product Data
Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Pitch Diameter
:
85.34
mm
(Equiv. 3.36 in.) - Bore
12.70
mm

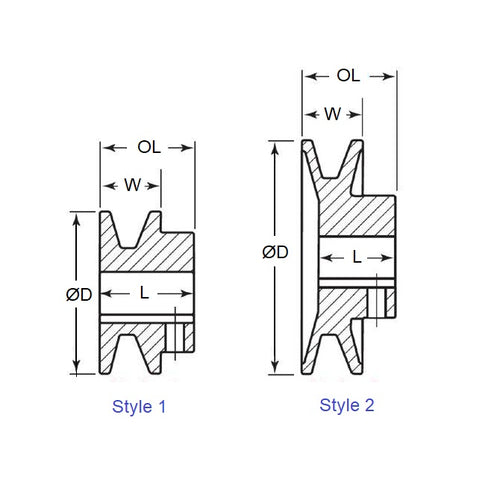

(Equiv. 0.5 in.) - Style 2
- Overall Width 34.93 mm
- Outside Diameter 100.33 mm
- Hub Diameter Not Specified / Set Screw mm
- Material Cast Iron
Product Compliance and Data
Additional Resources
Cross References
- MSK-MA40X12
- MSKMA40X12
