IDC-165RS - Datasheet
MBA
Category Information

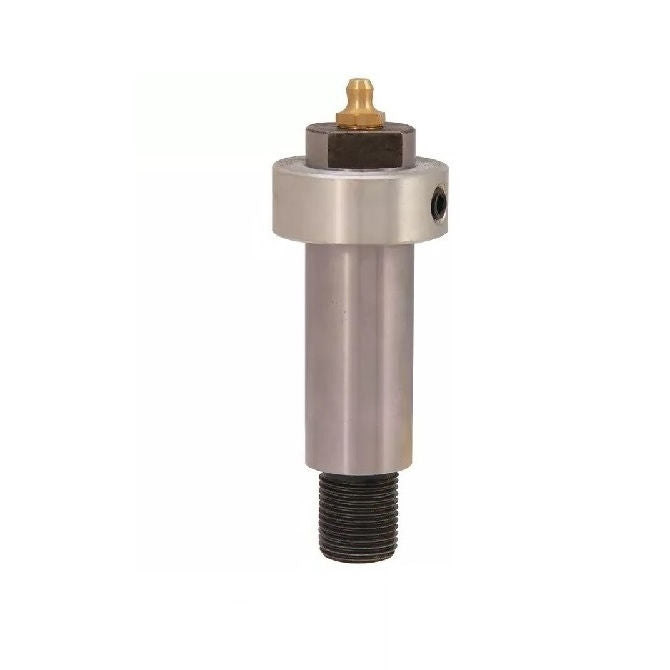

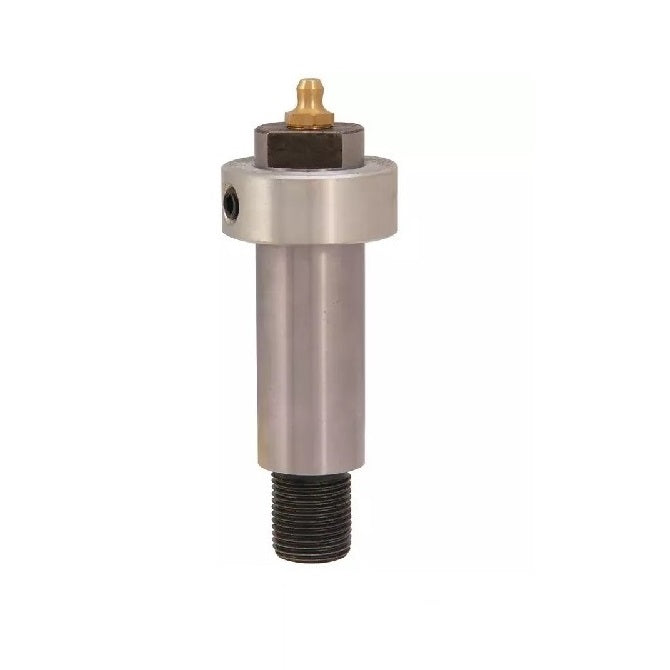

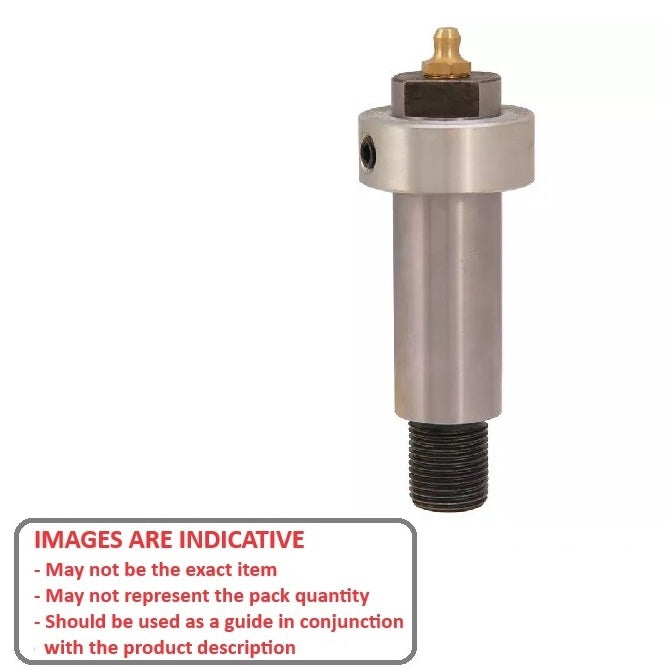

Idler ShaftsIdler Shafts. Ready made precision ground idler shafts.
- An expanded range may be available on special order. Please enquire.
- Internal grease hole can be accessed by drilling if required
- Use with your idler pulleys.
- Can be used with the idler tensioners listed on this site or use in your own design.
Product Data

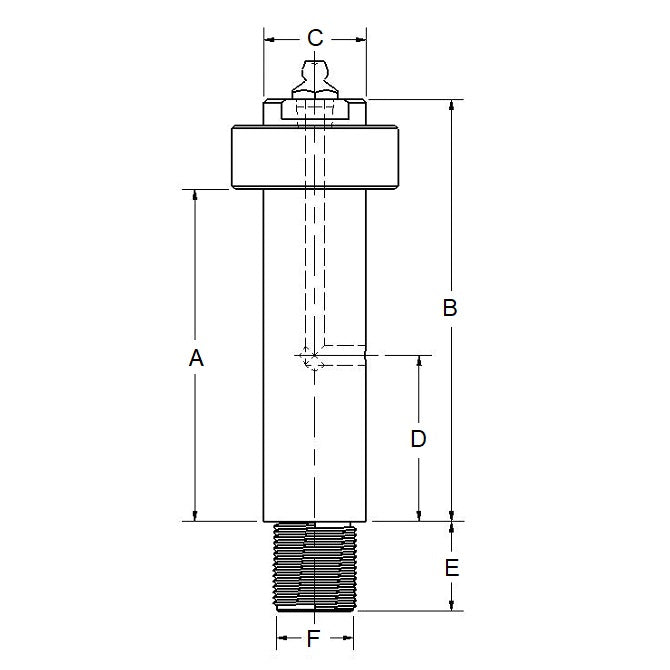

- Shaft Length (A) : 82.550 mm
- Diameter (C) 38.100 mm
- Thread Size 1in.-8TPI
- Overall Length (B) 101.600 mm
- Base to grease hole depth (D) 34.925 mm
- Thread Length (E) 33.325 mm
- Approx Weight 1.17 Kg
- Material Carbon Steel
