PF-3 - Datasheet
MBA
Category Information

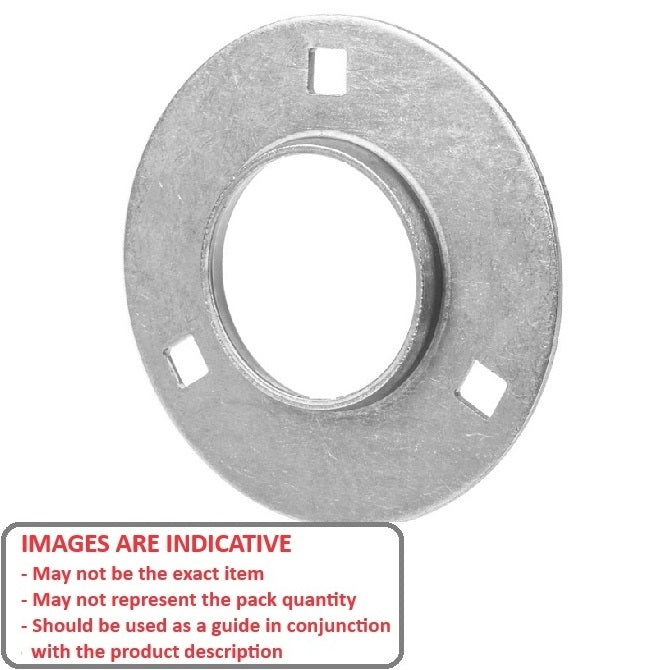

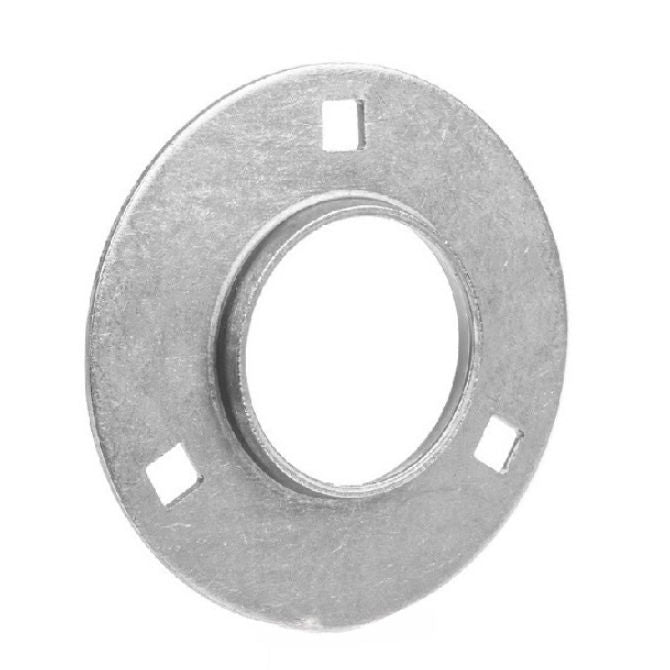

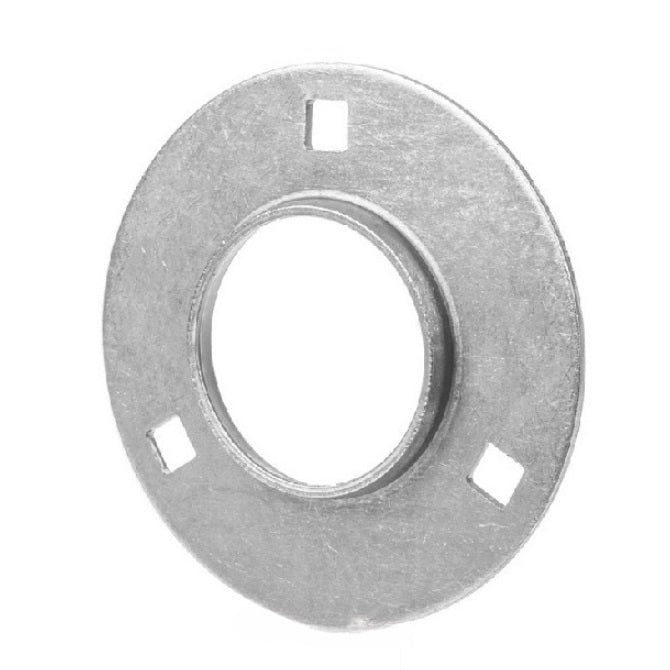

Housings - Flanged - 3 Bolt Hole - Pressed MetalPressed Metal 3 Bolt Hole Flanged Housings. Bearings sold separately.
- An expanded range may be available on special order. Please enquire.
- Use with steel bearing inserts for pressed metal housings.
- Larger sizes available on request.

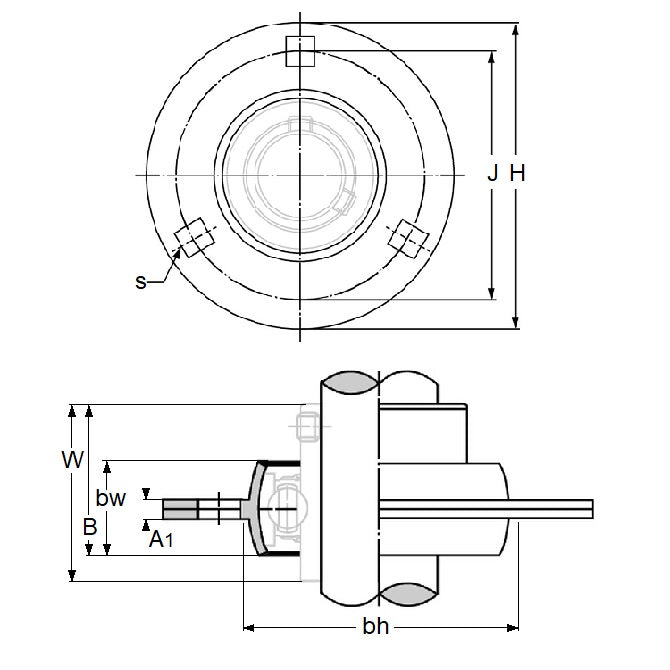

Product Data
- Height (H)
:
81.000
mm
(Equiv. 3.189 in.) - Width - Assembled (W)
23.000
mm
(Equiv. 0.906 in.) - Bolt Circle Diameter (J) 63.000 mm
- Base Width (A1) 4.000 mm
- Bearing Width (B) 22.000 mm
- To Suit Bearing B1 - B2 - B3
- Bolt Hole Size (s) 7.000 Square mm
- Body Width (bw) 14.000 mm
- Body Height Clearance (bh) 49.00 mm
- Material Steel
