P-030G-080-090P-AL-E-080 - Datasheet
MBA
Category Information

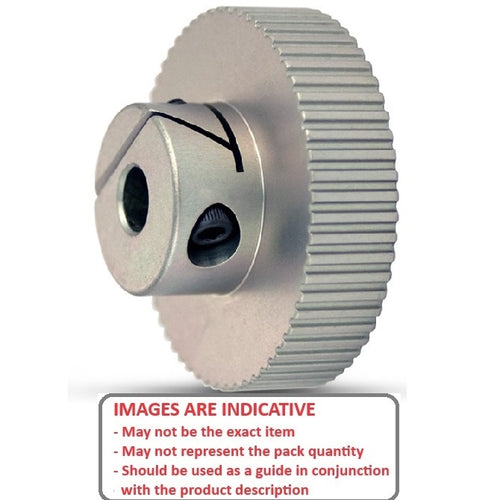

Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic - EZ-LockEZ-Lock Metallic 9mm Wide GT 3.000mm Pitch Metric Timing. Timing Pulleys to suit GT 3.000mm Pitch Timing Belts 9mm Wide. Use with GT2 or GT3 type belts.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Aluminium Alloy
- EZ-Lock hub clamps to the shaft with a socket head cap screw
- Cap screw is supplied with the pulley
Product Data
- Number of Teeth : 80
- Max Belt Width
9.00
mm
(Equiv. 0.354 in.) - Bore (d)
8.000
mm
(Equiv. 0.315 in.) - Bore Type Finished
- Locking Type EZ-Lock Hub

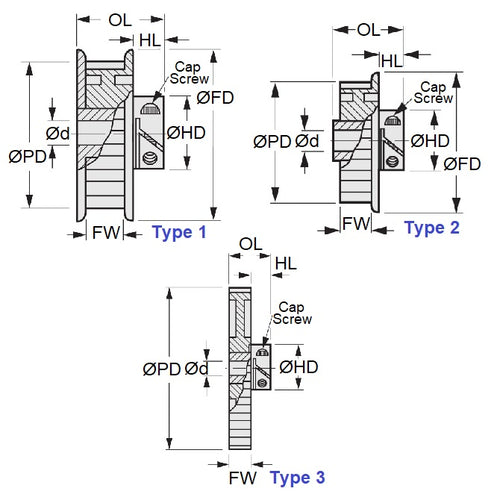

- Type 3
- Pitch Dia. (PD) 76.36 mm
- Overall Length 22.2 mm
- Hub Diameter (HD) 25.4
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Gates 80-3P09MIA8
- 803P09MIA8
- A6D53M080NF0908
