AD-2580 - Datasheet

C-JAC

Category Information

Shock Absorbers - Hydraulic - Adjustable - C-Jac

C-Jac Adjustable Hydraulic Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 80.0 mm
      (Equiv. 3.15 in.)
    • Thread (C) M25x1.5 (25.0mm)
    • Length (A) 343.5 mm
      (Equiv. 13.524 in.)
    • Shaft Size (D) 8.0 mm
    • Max. Effective Mass 800 Kg
    • Max. Nm Per Cycle 150 Nm
    • Max. Nm Per Hour 120000 Nm
    • Max Impact Speed 4.0 m/s
    • Weight 585 g
    • Body Length (B) 244.5 mm
    • Tip Diameter (C) 22.0 mm
    • Tip Length (E) 19.0 mm
    Country of Origin: AU

    Product Compliance and Data

    Additional Resources

      View full details

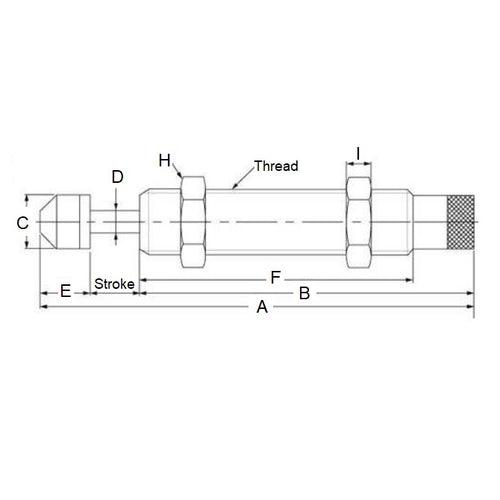

      AD-2580DiagramAD-2580Image
