MAG-CP-081-11-31-H - Datasheet
MBA
Category Information

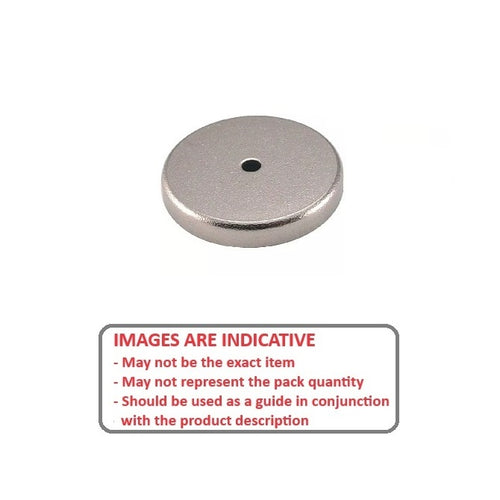

Magnets - Cup Assemblies Through HoleCup Assemblies Through Hole Magnets. This is the main category in this series
Product Data

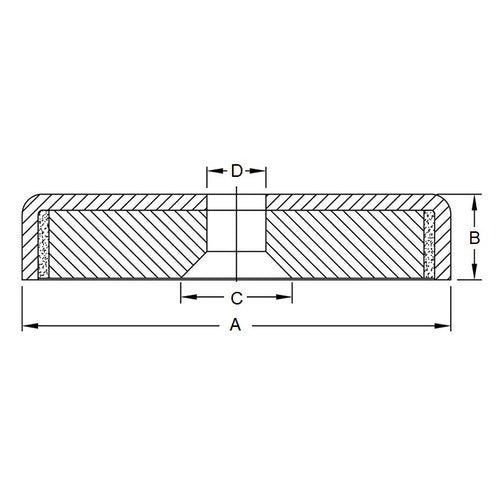

- Diameter (A)
:
80.77
mm
(Equiv. 3.18 in.) - Thickness (B)
11.11
mm
(Equiv. 0.437 in.) - Hole Recess (C)
30.56
mm
(Equiv. 1.203 in.) - Hole Top Diameter (D) 7.14 mm
- Holding Value 43 Kg
Product Compliance and Data
Additional Resources
Cross References
- IM46
- IM-46
