G127B-080-D16-095-127-AGPD - Datasheet
MBA
Category Information

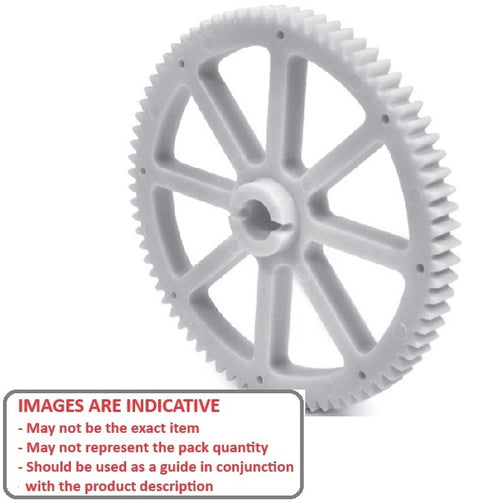

Gears - Spur - Hubbed - 16DP - 20 Degree Plastic20 Degree Plastic 16DP Hubbed Spur Gears. PCD in mm = No. of Teeth x 1.27 (1/20 in.). 20 Degree Pressure Angle. DP stands for Diametrical Pitch and is an imperial measurement system.
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
- The diameter increases by 1 inch for every 20 teeth
- 20 Diametrical Pitch. Approx 3.99mm between the teeth.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Number of Teeth : 80
- Pitch Circle Diameter (PD)
127.00
mm
(Equiv. 5 in.) - Bore (d)
12.700
mm
(Equiv. 0.5 in.) - Outside Diameter (OD) 130.175 mm
- Face Width (FW) 9.53 mm
- Type Hubbed
- Hub Diameter (D1) 22.23 mm
- Hub Projection (HL) 12.70 mm
- Locking Method Pin Hub Extended Both Sides - No Set Screw - Spoked
- Quality Commercial - Moulded
- Material Glass Filled Acetal
Product Compliance and Data
Additional Resources
Cross References
- G127B80D16095127AGPD
