REF-080-L-CT - Datasheet

MBA

Category Information

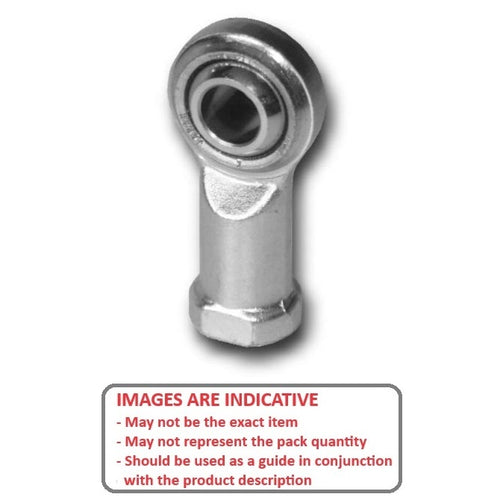

Rod Ends - Female - Steel - Plain - PTFE Lined - Tempered Steel

Tempered Steel PTFE Lined Plain Steel Female Rod Ends. Imperial and Metric. Forged tempered steel. Rolled thread. Surface galvanised. Also known as Heim Joints. Nylon - ptfe - glass compound race.

An expanded range may be available on special order. Please enquire.
Dimensions not shown are available on request.

Product Data

Eye Size (d1) : 8 mm
Overall Length (L) 48.500 mm
Thread Size M8x1.25 Left
Thread Length (l2) 16.00 mm
Head Width (W) 9.00 mm
Eye Width (W1) 12.00 mm
Centre Height (l1) 36.00 mm
Grease Nipple No
Body Width/Flange Width(W2/D3) 14.00 / 16.00 mm
Material Tempered Steel with PTFE

Country of Origin: JP

Product Compliance and Data

RoHs Statement
REACH Statement
CoC

Additional Resources

Measuring Small Parts
Metalworking Resource Guide

Rod & Tube Catalogue
Sintered Bronze Products Catalogue

Cross References

Misumi® E-GZNL8
EGZNL8
